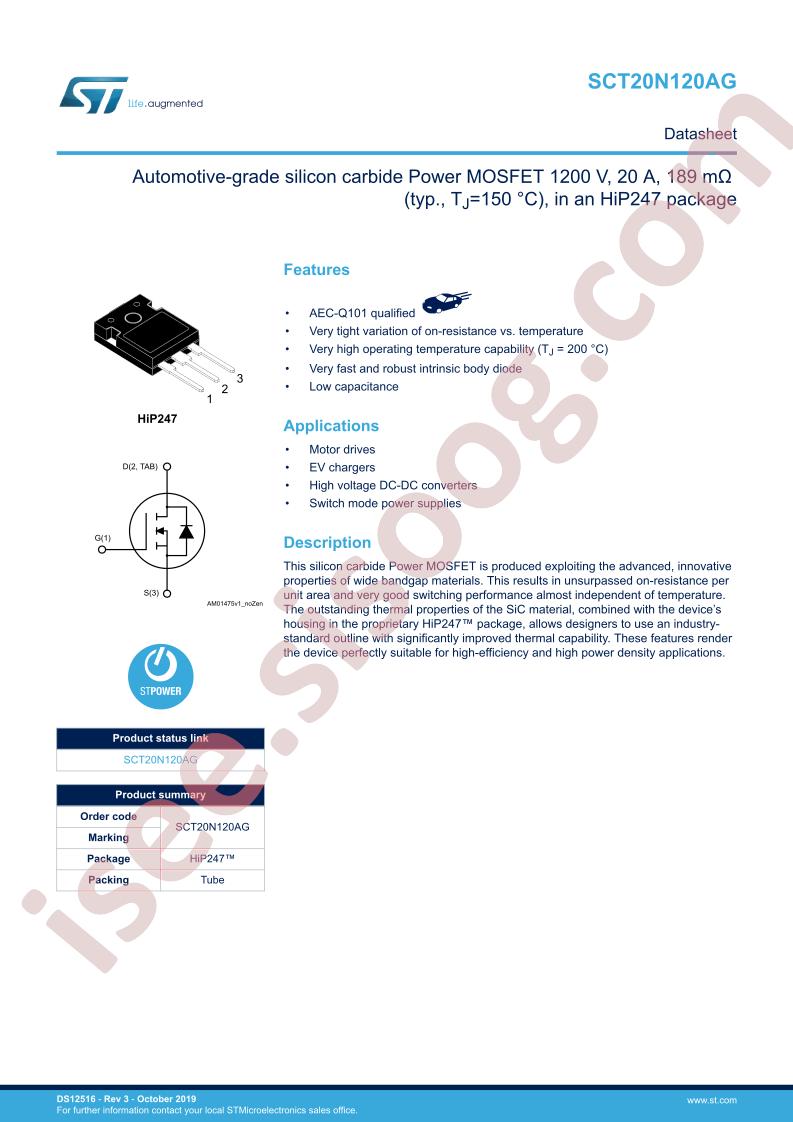

SCT20N120AG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SCT20N120AG
|
|
حجم فایل
|
492.414
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
Automotive, AEC-Q101
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
SiCFET (Silicon Carbide)
-
Drain to Source Voltage (Vdss):
1200V
-
Current - Continuous Drain (Id) @ 25°C:
20A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
20V
-
Rds On (Max) @ Id, Vgs:
239mOhm @ 10A, 20V
-
Vgs(th) (Max) @ Id:
3.5V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
45nC @ 20V
-
Vgs (Max):
+25V, -10V
-
Input Capacitance (Ciss) (Max) @ Vds:
650pF @ 400V
-
FET Feature:
-
-
Power Dissipation (Max):
153W (Tc)
-
Operating Temperature:
-55°C ~ 200°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
HiP247™
-
Package / Case:
TO-247-3
-
detail:
N-Channel 1200V 20A (Tc) 153W (Tc) Through Hole HiP247™
