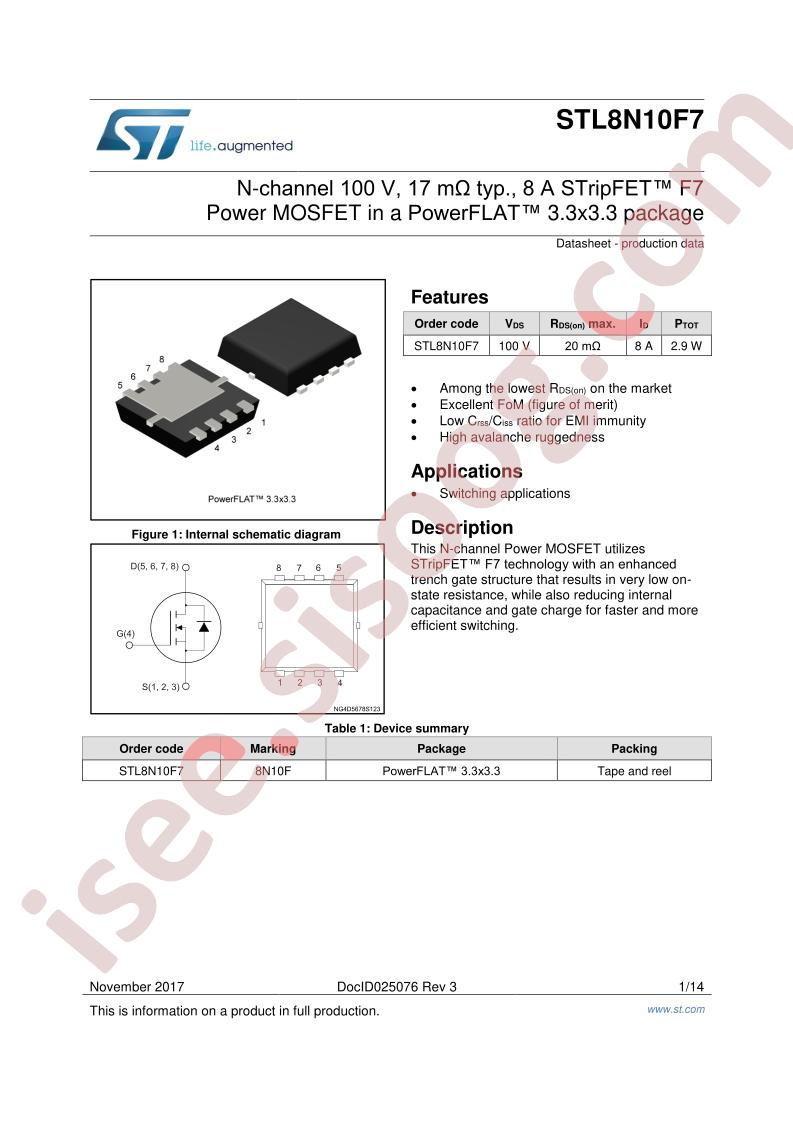

STL8N10F7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STL8N10F7
|
|
حجم فایل
|
660.853
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
DeepGATE™, STripFET™ VII
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
-
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
20mOhm @ 4A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
22nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
2000pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
3.5W (Ta), 50W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (3.3x3.3)
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
STL8
-
detail:
N-Channel 100V 3.5W (Ta), 50W (Tc) Surface Mount PowerFlat™ (3.3x3.3)
