- دیتاشیت MSP430G2xx2 Datasheet

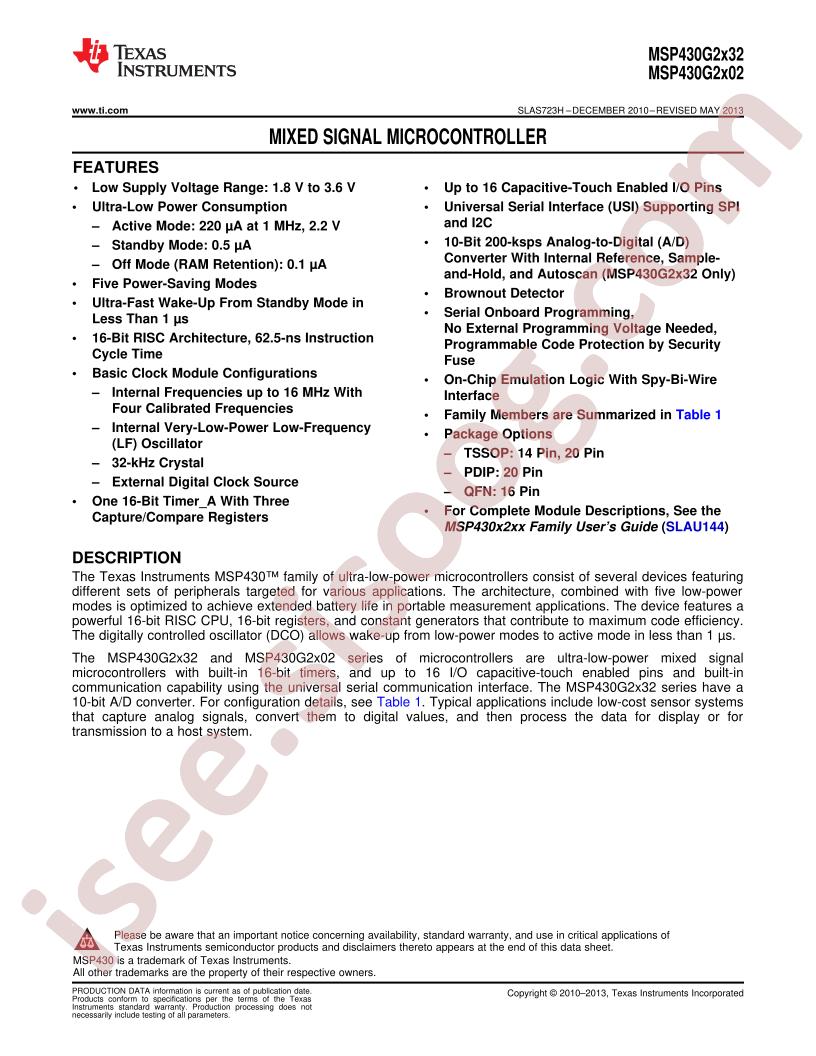

MSP430G2xx2 Datasheet دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MSP430G2xx2 Datasheet |
|---|---|
| حجم فایل | 1559.188 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 64 |
دانلود دیتاشیت MSP430G2xx2 Datasheet |
دانلود دیتاشیت |
|---|
سایر مستندات
MSP430G2332IPW14R 68 pages
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: MSP430
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 256Byte
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Texas Instruments MSP430G2332IRSA16R
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 16MHz
- GPIO Ports Number: 10
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT;DMA;PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 4KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: QFN-16-EP(4x4)
- Manufacturer: Texas Instruments
- Series: MSP430G2xx
- EEPROM Size: -
- Oscillator Type: Internal
- Mounting Type: Surface Mount
- Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
- Data Converters: A/D 8x10b
- Packaging: Cut Tape (CT)
- Core Processor: MSP430
- Number of I/O: 10
- Program Memory Size: 4KB (4K x 8)
- Core Size: 16-Bit
- Connectivity: I²C, SPI, USI
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Supplier Device Package: 16-QFN (4x4)
- Base Part Number: 430G2332
- Package / Case: 16-VQFN Exposed Pad
- Speed: 16MHz
- Part Status: Active
- Operating Temperature: -40°C ~ 85°C (TA)
- detail: MSP430 MSP430G2xx Microcontroller IC 16-Bit 16MHz 4KB (4K x 8) FLASH 16-QFN (4x4)
