T405Q-600 Datasheet

T405Q-600

Datasheet specifications

Datasheet's name T405Q-600
File size 311.436 KB
File type pdf
Number of pages 12

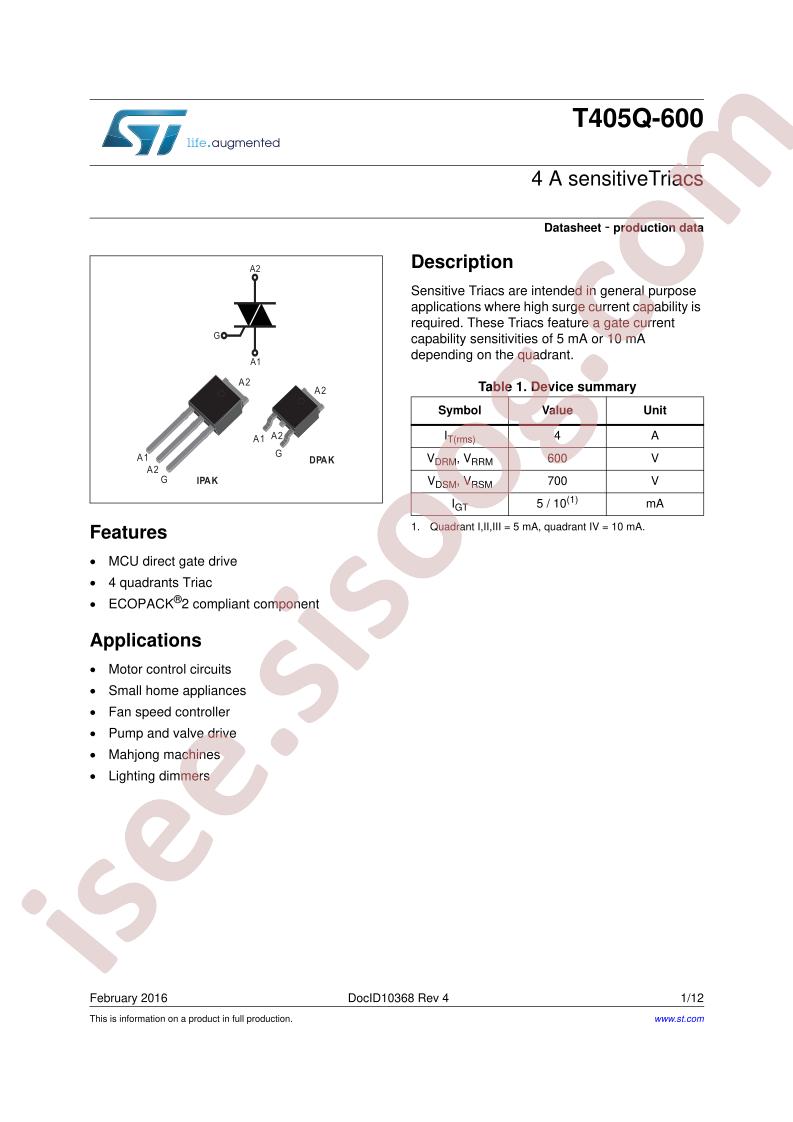

Download Datasheet T405Q-600

Download Datasheet

Other documentations

T405Q-600B-TR 12 pages

Technical specifications

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/TRIACs
  • Datasheet: STMicroelectronics T405Q-600H
  • Package: TO-251-3
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Triac Type: Logic - Sensitive Gate
  • Voltage - Off State: 600V
  • Current - On State (It (RMS)) (Max): 4A
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 35A, 38A
  • Current - Gate Trigger (Igt) (Max): 5mA
  • Current - Hold (Ih) (Max): 10mA
  • Configuration: Single
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
  • Supplier Device Package: I-PAK
  • Base Part Number: T405
  • detail: TRIAC Logic - Sensitive Gate 600V 4A Through Hole I-PAK
