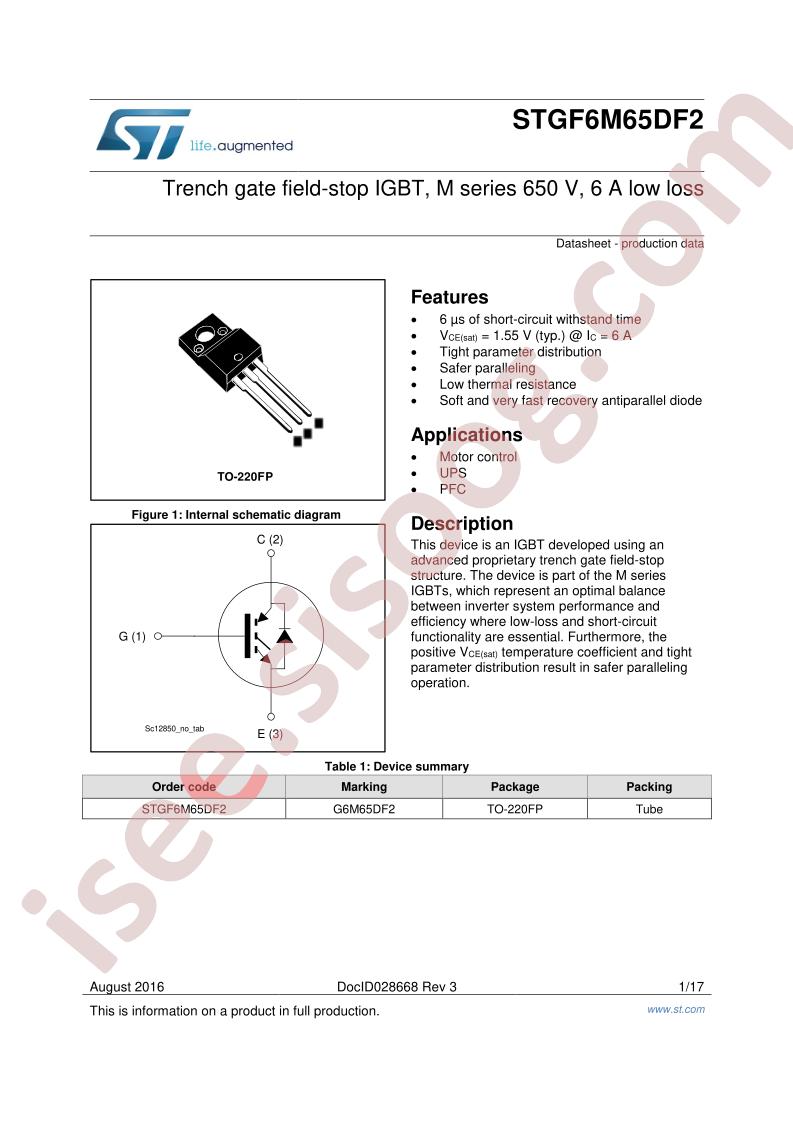

STGF6M65DF2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGF6M65DF2
|
|
حجم فایل
|
984.071
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
M
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
12A
-
Current - Collector Pulsed (Icm):
24A
-
Vce(on) (Max) @ Vge, Ic:
2V @ 15V, 6A
-
Power - Max:
24.2W
-
Switching Energy:
36µJ (on), 200µJ (off)
-
Input Type:
Standard
-
Gate Charge:
21.2nC
-
Td (on/off) @ 25°C:
15ns/90ns
-
Test Condition:
400V, 6A, 22Ohm, 15V
-
Reverse Recovery Time (trr):
140ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220FP
-
Base Part Number:
STGF6
-
detail:
IGBT Trench Field Stop 650V 12A 24.2W Through Hole TO-220FP
