TPS2556DRBT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS2556DRBT
|
|
حجم فایل
|
78.9
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
30
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Power Distribution Switches
-
Datasheet:

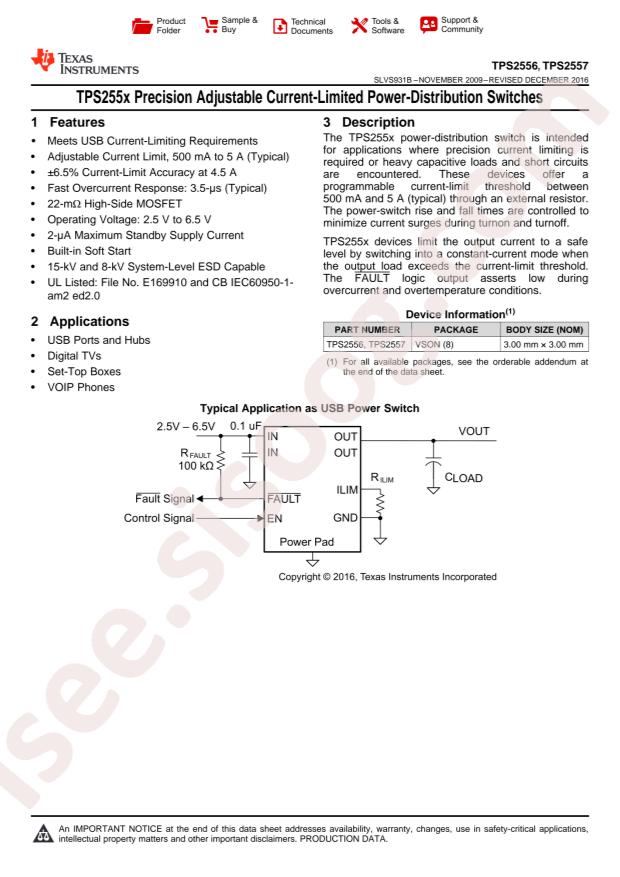

Texas Instruments TPS2556DRBT
-
Input Voltage:
2.5V~6.5V
-
Output Current:
5A
-
Number of Outputs:
1
-
Resistor On-State:
22mΩ
-
Operating Temperature -:
-40°C~+125°C
-
Package:
SON-8-EP(3x3)
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Output Configuration:
High Side
-
Output Type:
N-Channel
-
Fault Protection:
Current Limiting (Adjustable), Over Temperature, UVLO
-
Packaging:
Cut Tape (CT)
-
Ratio - Input:Output:
1:1
-
Input Type:
Non-Inverting
-
Current - Output (Max):
5A
-
Voltage - Supply (Vcc/Vdd):
Not Required
-
Switch Type:
General Purpose
-
Supplier Device Package:
8-SON (3x3)
-
Base Part Number:
TPS255
-
Features:
Slew Rate Controlled, Status Flag
-
Voltage - Load:
2.5V ~ 6.5V
-
Interface:
On/Off
-
Rds On (Typ):
22mOhm
-
Mounting Type:
Surface Mount
-
Package / Case:
8-VDFN Exposed Pad
-
Part Status:
Active
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
detail:
Power Switch/Driver 1:1 N-Channel 5A 8-SON (3x3)
