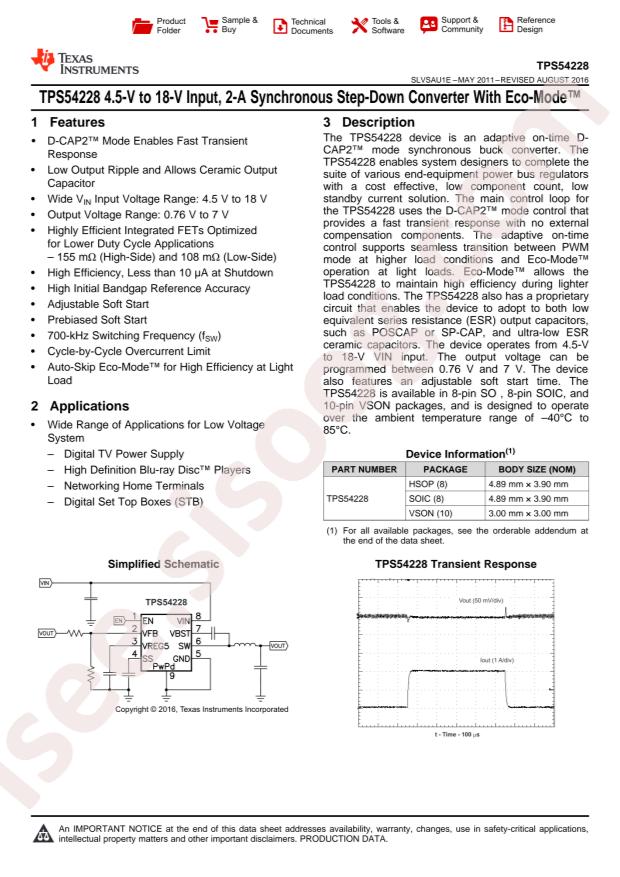

TPS54228DRCR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS54228DRCR
|
|
حجم فایل
|
109.377
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
34
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS54228DRCR
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~18V
-
Output Voltage:
0.76V~7V
-
Number of Outputs:
1
-
Switching Frequency:
700kHz
-
Output Current (Max):
2A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-

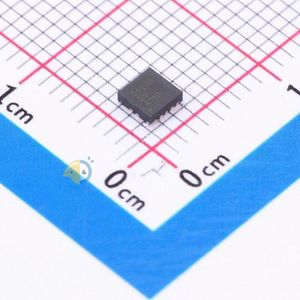

Package:
DFN-10(3x3)
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
10-VSON (3x3)
-
Voltage - Input (Min):
4.5V
-
Voltage - Output (Max):
7V
-
Output Configuration:
Positive
-
Mounting Type:
Surface Mount
-
Current - Output:
2A
-
Synchronous Rectifier:
Yes
-
Frequency - Switching:
700kHz
-
Packaging:
Tape & Reel (TR)
-
Voltage - Output (Min/Fixed):
0.76V
-
Series:
D-CAP2™, Eco-Mode™
-
Base Part Number:
TPS542
-
Voltage - Input (Max):
18V
-
Part Status:
Active
-
Package / Case:
10-VFDFN Exposed Pad
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 2A 10-VFDFN Exposed Pad
