Power Management Guide دیتاشیت

Power Management Guide

مشخصات دیتاشیت

نام دیتاشیت Power Management Guide
حجم فایل 6420.273 کیلوبایت
نوع فایل pdf
تعداد صفحات 93

دانلود دیتاشیت Power Management Guide

دانلود دیتاشیت

سایر مستندات

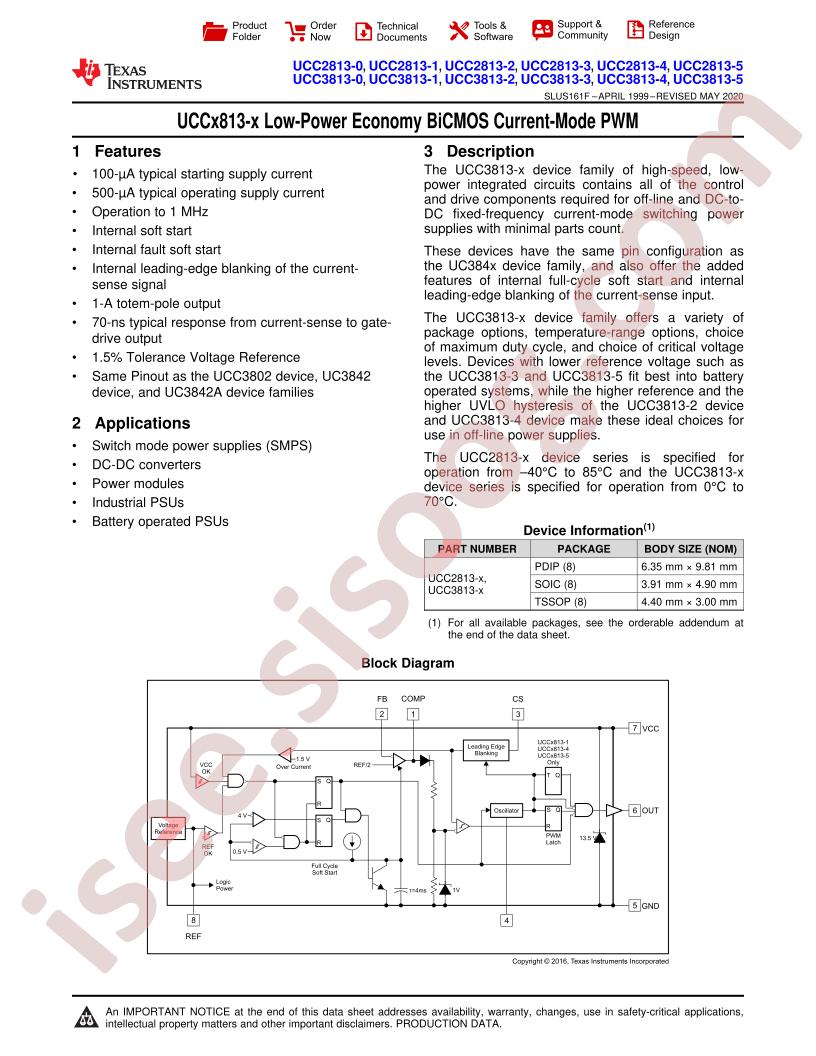

UCC2813-x, UCC3813-x Datasheet 52 pages

UCC3813D-4 52 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Boost;Flyback;Forward
  • Datasheet: Texas Instruments UCC2813DTR-2
  • Duty Cycle: 99%
  • Supply Voltage: 8.3V~12V
  • Switching Frequency: 1MHz
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): 8.3V ~ 12V
  • Base Part Number: UCC281
  • Voltage - Breakdown: -
  • Voltage - Start Up: 12.5V
  • Mounting Type: Surface Mount
  • Internal Switch(s): No
  • Fault Protection: -
  • Frequency - Switching: 1MHz
  • Packaging: Cut Tape (CT)
  • Series: -
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Output Isolation: Either
  • Part Status: Active
  • Supplier Device Package: 8-SOIC
  • Control Features: Frequency Control
  • detail: Converter Offline Boost, Flyback, Forward Topology 1MHz 8-SOIC
