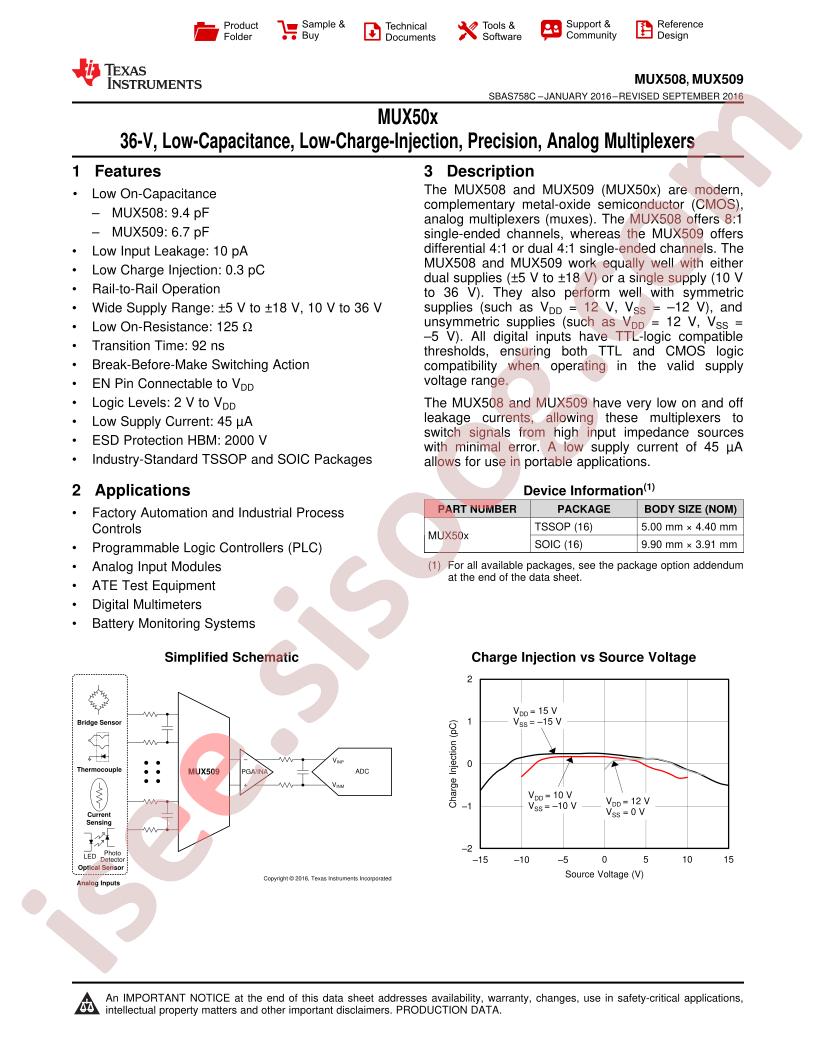

MUX508, MUX509 Datasheet دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت MUX508, MUX509 Datasheet	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments MUX509IDR
Turn-on time: 136ns
Turn-off time: 75ns
Supply Voltage: 10V~36V
Switch Circuit: 单刀四掷(SP4T)
Number of Channels: 2
On-State Resistance (Max): 170Ω
Package: SOP-16
Manufacturer: Texas Instruments
Voltage - Supply, Single (V+): 10V ~ 36V
Multiplexer/Demultiplexer Circuit: 4:1
Current - Leakage (IS(off)) (Max): 1nA
Crosstalk: -96dB @ 1MHz
Voltage - Supply, Dual (V±): ±5V ~ 18V
Packaging: Cut Tape (CT)
Channel-to-Channel Matching (ΔRon): 2.4Ohm
Charge Injection: 0.3pC
Supplier Device Package: 16-SOIC
-3db Bandwidth: -
Base Part Number: MUX509
Mounting Type: Surface Mount
Channel Capacitance (CS(off), CD(off)): 2.4pF, 4.3pF
Switch Time (Ton, Toff) (Max): 136ns, 75ns
Operating Temperature: -40°C ~ 125°C (TA)
Number of Circuits: 2
Series: -
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Part Status: Active
detail: 2 Circuit IC Switch 4:1 170Ohm 16-SOIC
