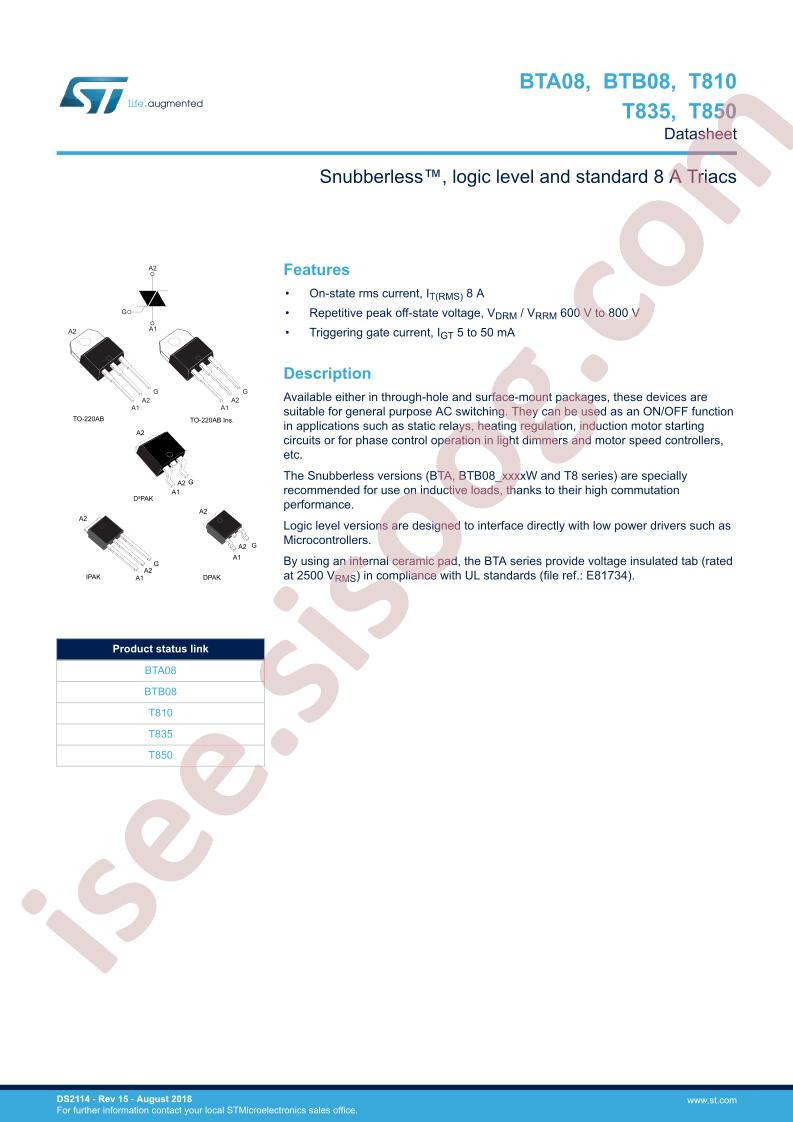

- BTA08, BTB08, T8x0, T835 Datasheet
T835-8G Datasheet
Datasheet specifications
| Datasheet's name | BTA08, BTB08, T8x0, T835 Datasheet |
|---|---|
| File size | 303.189 KB |
| File type | |
| Number of pages | 21 |
Download Datasheet BTA08, BTB08, T8x0, T835 Datasheet |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: STMicroelectronics
- Series: Snubberless™
- Packaging: Tube
- Part Status: Active
- Triac Type: Alternistor - Snubberless
- Voltage - Off State: 800V
- Current - On State (It (RMS)) (Max): 8A
- Voltage - Gate Trigger (Vgt) (Max): 1.2V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 80A, 84A
- Current - Gate Trigger (Igt) (Max): 35mA
- Current - Hold (Ih) (Max): 35mA
- Configuration: Single
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D2PAK
- Base Part Number: T835
- detail: TRIAC Alternistor - Snubberless 800V 8A Surface Mount D2PAK
