LM5108 Datasheet دیتاشیت

LM5108 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LM5108 Datasheet
حجم فایل 1829.723 کیلوبایت
نوع فایل pdf
تعداد صفحات 33

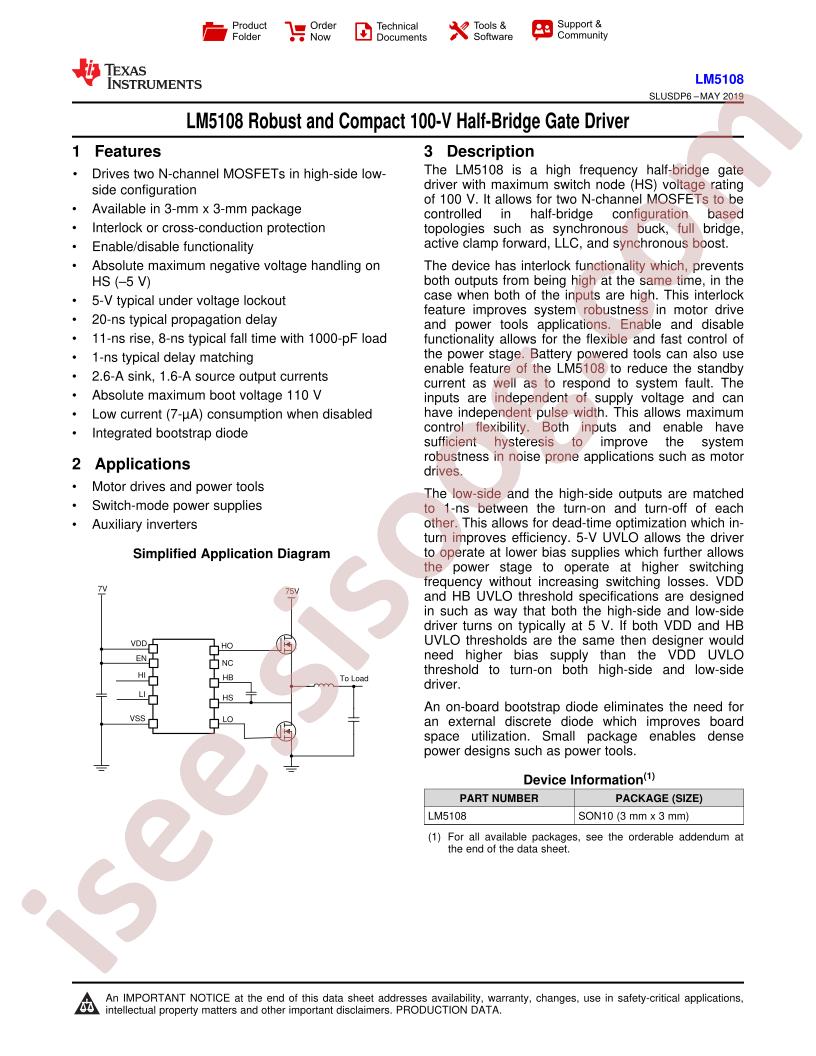

مشاهده دیتاشیت LM5108 Datasheet

دانلود دیتاشیت

سایر مستندات

LM5108DRCR 33 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments LM5108DRCR
  • Fall Time: 8ns
  • Load Type: MOSFET
  • Rise Time: 11ns
  • Supply Voltage: 5.5V~16V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 2.6A
  • Peak Output Current(source): 1.6A
  • Package: DFN-10(3x3)
  • Manufacturer: Texas Instruments
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Rise / Fall Time (Typ): 11ns, 8ns
  • Supplier Device Package: 10-VSON (3x3)
  • Mounting Type: Surface Mount
  • Current - Peak Output (Source, Sink): 1.6A, 2.6A
  • Input Type: CMOS/TTL
  • Base Part Number: LM5108
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 5.5V ~ 16V
  • Series: -
  • Package / Case: 10-VFDFN Exposed Pad
  • Part Status: Active
  • Logic Voltage - VIL, VIH: -
  • detail: Half-Bridge Gate Driver IC CMOS/TTL 10-VSON (3x3)
