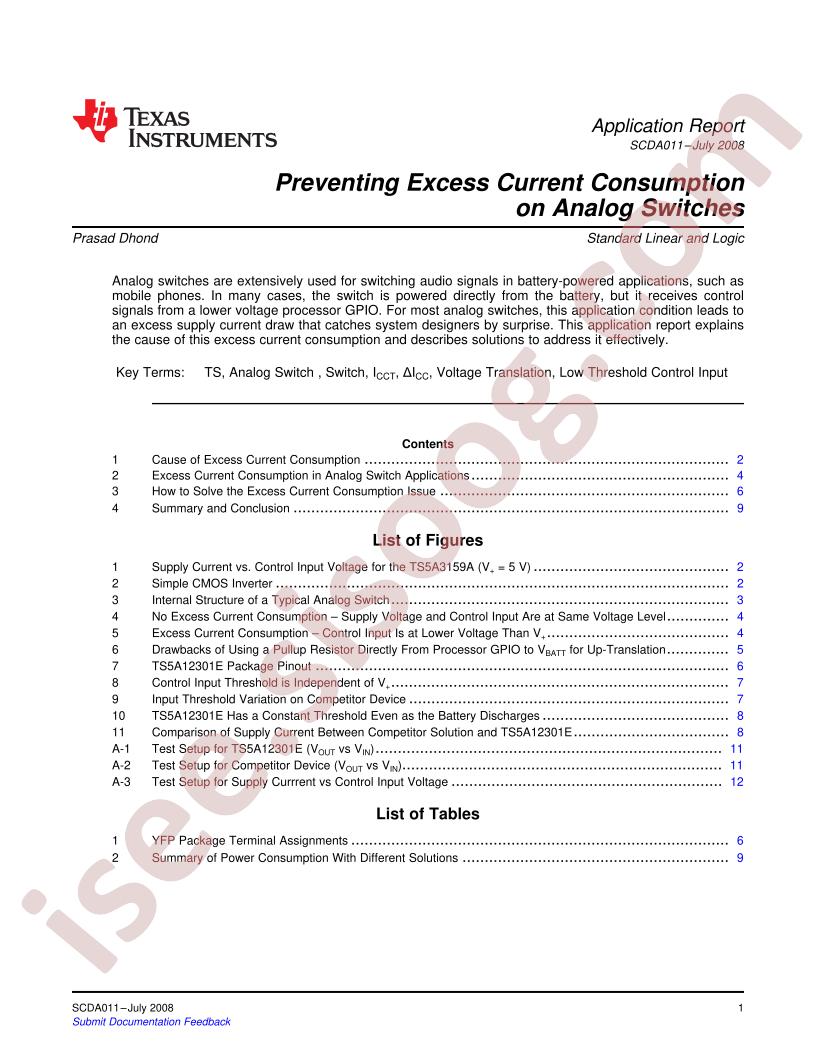

Analog Switch Application Report دیتاشیت

Analog Switch Application Report

مشخصات دیتاشیت

نام دیتاشیت Analog Switch Application Report
حجم فایل 244.45 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

مشاهده دیتاشیت Analog Switch Application Report

دانلود دیتاشیت

سایر مستندات

TS5MP645 Datasheet 34 pages

TS5MP645YFPR 35 pages

مشخصات فنی

  • RoHS: true
  • Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
  • Datasheet: Texas Instruments TS5MP645YFPR
  • Supply Voltage: 1.65V~5.5V
  • Switch Circuit: SPDT(SPDT)
  • Number of Channels: 10
  • On-State Resistance (Max): 6.5Ω
  • Package: BGA-36
  • Manufacturer: Texas Instruments
  • Voltage - Supply, Single (V+): 1.65V ~ 5.5V
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Current - Leakage (IS(off)) (Max): 500nA
  • Crosstalk: -40dB @ 1.25GHz
  • Voltage - Supply, Dual (V±): -
  • Packaging: Cut Tape (CT)
  • Channel-to-Channel Matching (ΔRon): 100mOhm
  • Charge Injection: -
  • Supplier Device Package: 36-DSBGA
  • -3db Bandwidth: 1.5GHz
  • Base Part Number: TS5MP6
  • Mounting Type: Surface Mount
  • Channel Capacitance (CS(off), CD(off)): 1.5pF
  • Switch Time (Ton, Toff) (Max): -
  • Operating Temperature: -40°C ~ 85°C
  • Number of Circuits: 10
  • Series: -
  • Package / Case: 36-XFBGA, DSBGA
  • Part Status: Active
  • detail: 10 Circuit IC Switch 2:1 6.5Ohm 36-DSBGA
