UCC27201D دیتاشیت

UCC27201D

مشخصات دیتاشیت

نام دیتاشیت UCC27201D
حجم فایل 100.22 کیلوبایت
نوع فایل pdf
تعداد صفحات 41

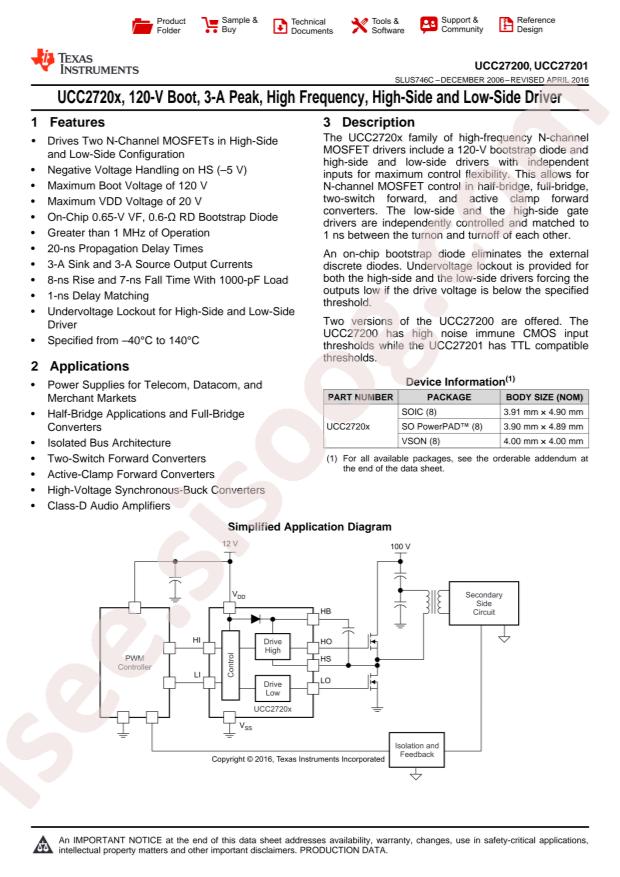

دانلود دیتاشیت UCC27201D

دانلود دیتاشیت

سایر مستندات

UCC27200/01 39 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27201DRMR
  • Fall Time: 7ns
  • Load Type: MOSFET
  • Rise Time: 8ns
  • Supply Voltage: 8V~17V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+140°C@(Tj)
  • Peak Output Current(sink): 3A
  • Peak Output Current(source): 3A

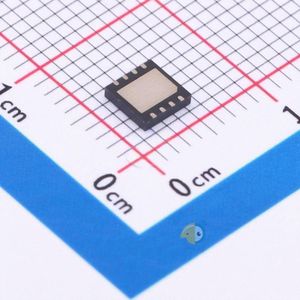

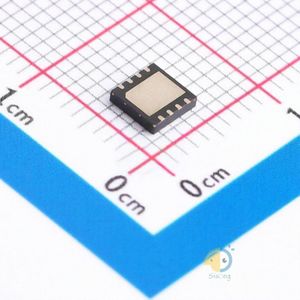

  • Package: DFN-8(4x4)
  • Manufacturer: Texas Instruments
  • Channel Type: Independent
  • Current - Peak Output (Source, Sink): 3A, 3A
  • Base Part Number: UCC272
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Logic Voltage - VIL, VIH: 0.8V, 2.5V
  • Supplier Device Package: 8-SOIC
  • Rise / Fall Time (Typ): 8ns, 7ns
  • Part Status: Active
  • Series: -
  • Input Type: Non-Inverting
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 8V ~ 17V
  • Gate Type: N-Channel MOSFET
  • High Side Voltage - Max (Bootstrap): 120V
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-SOIC
