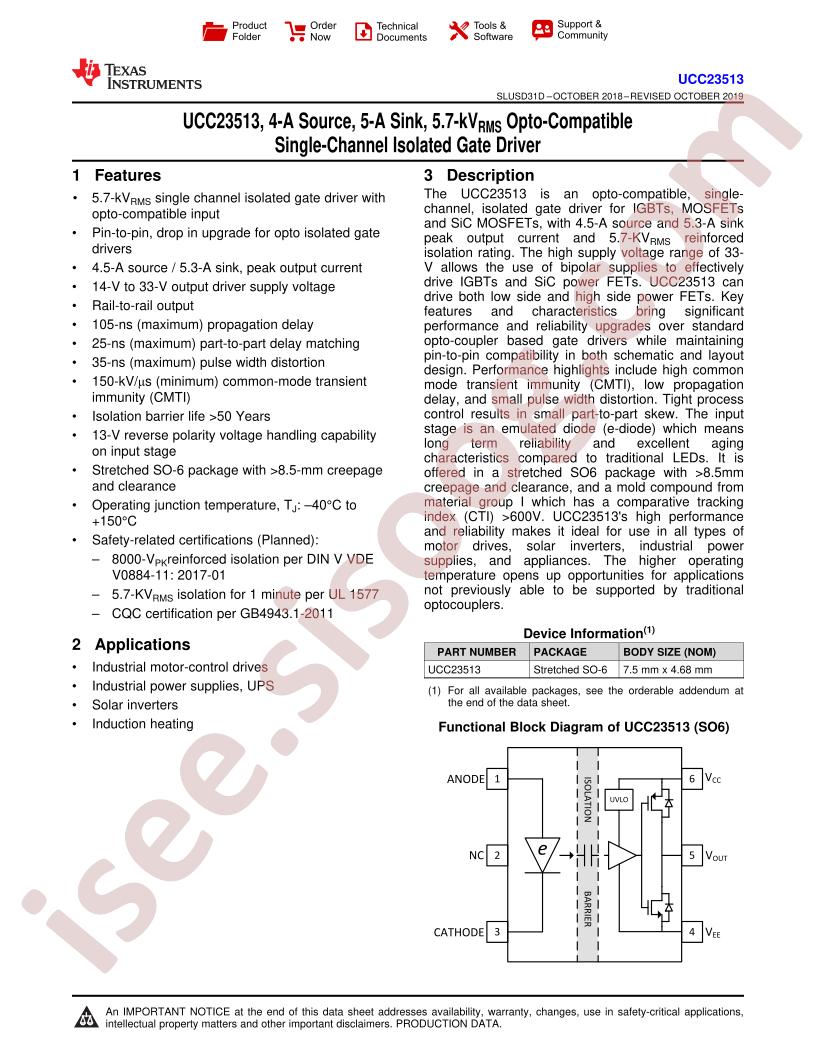

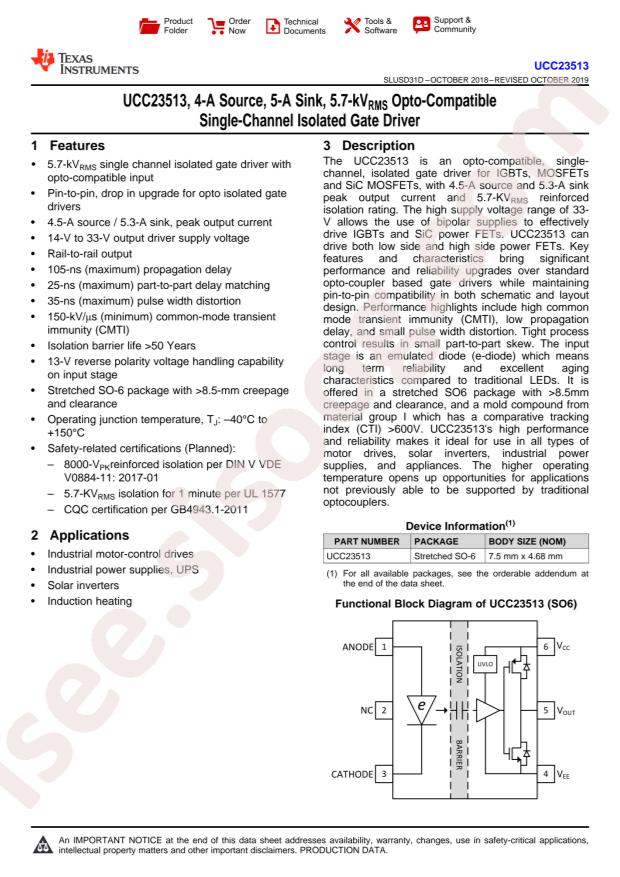

دیتاشیت UCC23513DWYR

UCC23513 Datasheet

مشخصات دیتاشیت

نام دیتاشیت UCC23513 Datasheet
حجم فایل 9952.836 کیلوبایت
نوع فایل pdf
تعداد صفحات 42

دانلود دیتاشیت UCC23513 Datasheet

UCC23513 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC23513DWYR
  • Package: SOP-6-300mil
  • Manufacturer: Texas Instruments
  • Pulse Width Distortion (Max): 35ns
  • Current - Peak Output: 3A
  • Number of Channels: 1
  • Series: -
  • Current - Output High, Low: 4.5A, 5.3A
  • Current - DC Forward (If) (Max): 25mA
  • Packaging: Cut Tape (CT)
  • Propagation Delay tpLH / tpHL (Max): 115ns, 115ns
  • Common Mode Transient Immunity (Min): 100kV/µs
  • Voltage - Forward (Vf) (Typ): 2V
  • Technology: Optical Coupling
  • Supplier Device Package: 6-SOIC
  • Voltage - Output Supply: 13.2V ~ 33V
  • Base Part Number: UCC235
  • Approval Agency: CQC, CSA, TUV, UL, VDE
  • Voltage - Isolation: 5000Vrms
  • Operating Temperature: -40°C ~ 130°C
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Rise / Fall Time (Typ): 28ns, 25ns (Max)
  • Package / Case: 6-SOIC (0.295", 7.50mm Width)
  • detail: 3A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SOIC
