دیتاشیت LM5101ASD-1/NOPB

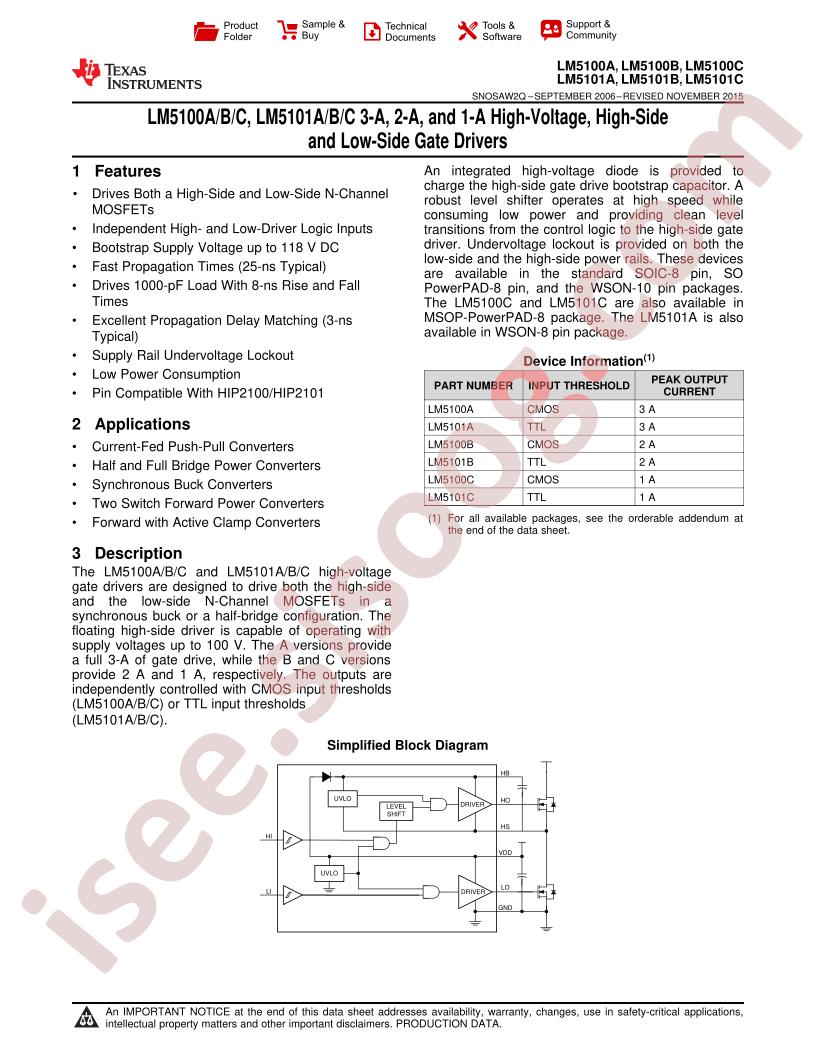

LM5100-01A/B/C

مشخصات دیتاشیت

نام دیتاشیت LM5100-01A/B/C
حجم فایل 2075.322 کیلوبایت
نوع فایل pdf
تعداد صفحات 42

دانلود دیتاشیت LM5100-01A/B/C

LM5100-01A/B/C Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments LM5101ASD-1/NOPB
  • Fall Time: 260ns
  • Load Type: MOSFET
  • Rise Time: 430ns
  • Supply Voltage: 9V~14V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 3A
  • Peak Output Current(source): 3A
  • Package: DFN-8-EP(4x4)
  • Manufacturer: Texas Instruments
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Rise / Fall Time (Typ): 430ns, 260ns
  • Supplier Device Package: 8-WSON (4x4)
  • Mounting Type: Surface Mount
  • Current - Peak Output (Source, Sink): 3A, 3A
  • Input Type: Non-Inverting
  • Base Part Number: LM5101
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 9V ~ 14V
  • Series: -
  • Package / Case: 8-WDFN Exposed Pad
  • High Side Voltage - Max (Bootstrap): 118V
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 2.3V, -
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-WSON (4x4)
