دیتاشیت ESDAXLC5-1U2

ESDAXLC5-1U2

مشخصات دیتاشیت

نام دیتاشیت ESDAXLC5-1U2
حجم فایل 348.925 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت ESDAXLC5-1U2

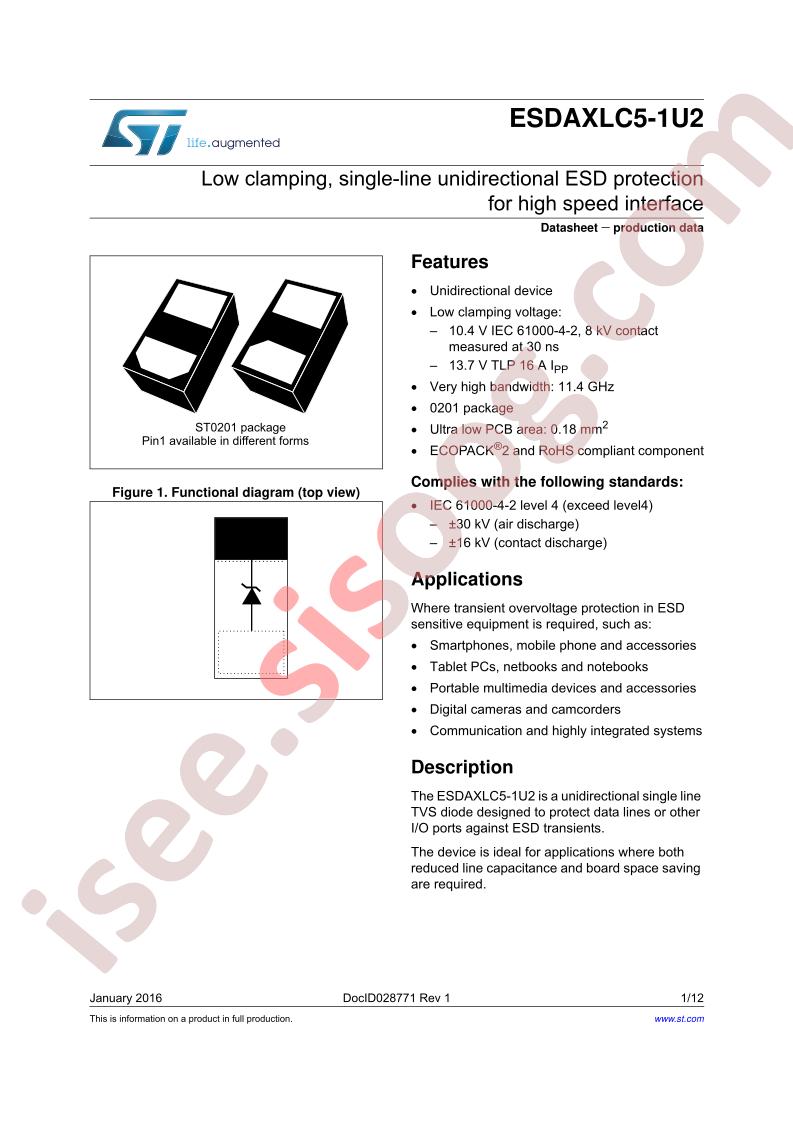

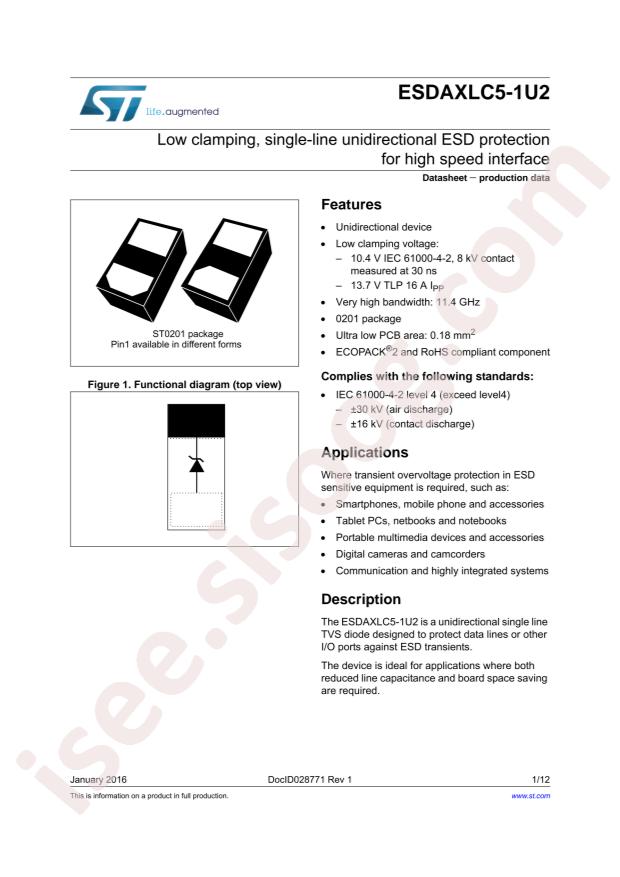

ESDAXLC5-1U2 Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics ESDAXLC5-1U2
  • Clamping Voltage@Ipp: 8V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): 6.6V
  • Peak Pulse Power(Ppp)@8/20us: 20W
  • Junction Capacitance(Cj)@1MHz: 0.7pF@3MHz
  • Peak Pulse Current(Ipp)@8/20us: 2.2A
  • Reverse Stand-Off Voltage (Vrwm): 3.6V
  • Package: -
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 3.6V
  • Voltage - Breakdown (Min): 6.6V
  • Voltage - Clamping (Max) @ Ipp: 8V
  • Current - Peak Pulse (10/1000µs): 2.2A
  • Power - Peak Pulse: 20W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 0.7pF @ 3MHz
  • Mounting Type: Surface Mount
  • Package / Case: 0201 (0603 Metric)
  • Supplier Device Package: ST0201
  • Base Part Number: ESDAXLC5
  • detail: 8V Clamp 2.2A Ipp Tvs Diode Surface Mount ST0201
