دیتاشیت CBTVS2A16-1F3

CBTVS2A16-1F3 Datasheet

مشخصات دیتاشیت

نام دیتاشیت CBTVS2A16-1F3 Datasheet
حجم فایل 187.303 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت CBTVS2A16-1F3 Datasheet

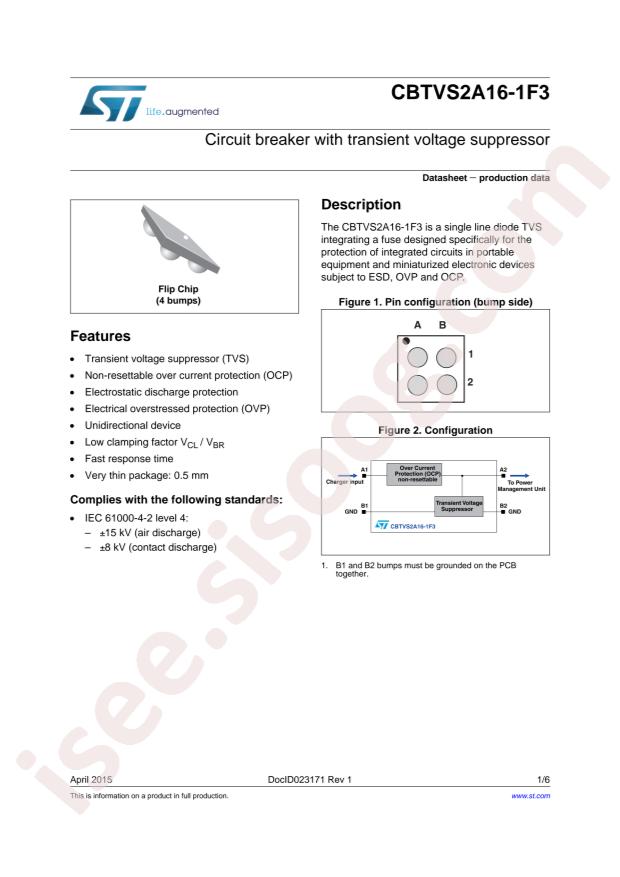

CBTVS2A16-1F3 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics CBTVS2A16-1F3
  • Number of Lines: 1
  • Clamping Voltage@Ipp: 19V
  • Operating Temperature: +125°C@(Tj)
  • Breakdown Voltage (VBR): 16V
  • Peak Pulse Power(Ppp)@8/20us: 70W
  • Junction Capacitance(Cj)@1MHz: 125pF@1MHz
  • Peak Pulse Current(Ipp)@8/20us: -
  • Reverse Stand-Off Voltage (Vrwm): -
  • Package: FlipChip-4(0.77x0.77)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Type: -
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): -
  • Voltage - Breakdown (Min): 16V
  • Voltage - Clamping (Max) @ Ipp: 19V
  • Current - Peak Pulse (10/1000µs): -
  • Power - Peak Pulse: 70W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 125pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: 4-UFBGA, FCBGA
  • Supplier Device Package: 4-FlipChip (0.77x0.77)
  • detail: 19V Clamp Ipp Tvs Diode Surface Mount 4-FlipChip (0.77x0.77)
