دیتاشیت UCC5350SBDR
مشخصات دیتاشیت
| نام دیتاشیت | UCC5350SB Datasheet |
|---|---|
| حجم فایل | 2206.258 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 60 |

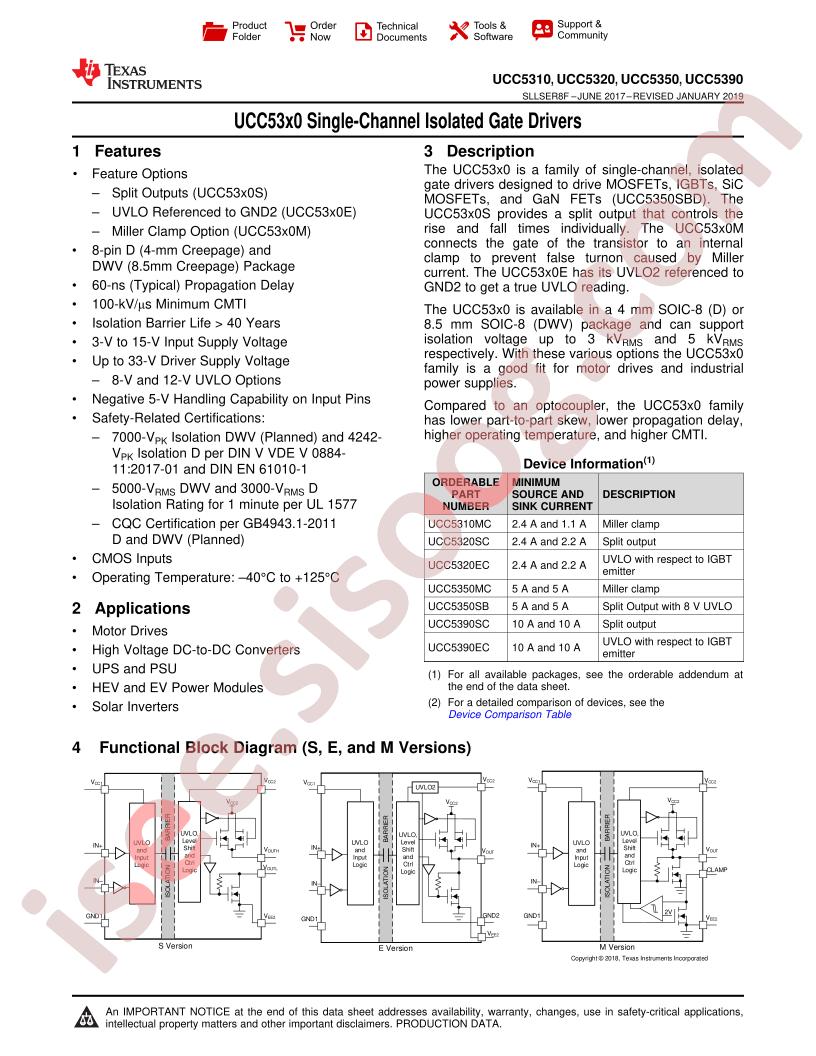

دانلود دیتاشیت UCC5350SB Datasheet |
UCC5350SB Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Texas Instruments UCC5350SBDR
- Fall Time: 10ns
- Rise Time: 10ns
- Number of Drivers: 1
- Operating Temperature: -40°C~+125°C
- Peak Output Current(sink): 10A
- Peak Output Current(source): 8.5A
- Package: SOP-8
- Manufacturer: Texas Instruments
- Pulse Width Distortion (Max): 20ns
- Current - Peak Output: -
- Supplier Device Package: 8-SOIC
- Number of Channels: 1
- Mounting Type: Surface Mount
- Voltage - Forward (Vf) (Typ): -
- Voltage - Output Supply: 9.5V ~ 33V
- Current - Output High, Low: 8.5A, 10A
- Approval Agency: CQC, CSA, UR, VDE
- Voltage - Isolation: 3000Vrms
- Base Part Number: UCC535
- Packaging: Cut Tape (CT)
- Technology: Capacitive Coupling
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Series: -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Common Mode Transient Immunity (Min): 100kV/µs
- Part Status: Active
- Rise / Fall Time (Typ): 10ns, 10ns
- detail: Gate Driver Capacitive Coupling 3000Vrms 1 Channel 8-SOIC
