دیتاشیت SN74ALS645A-1DWR

مشخصات دیتاشیت

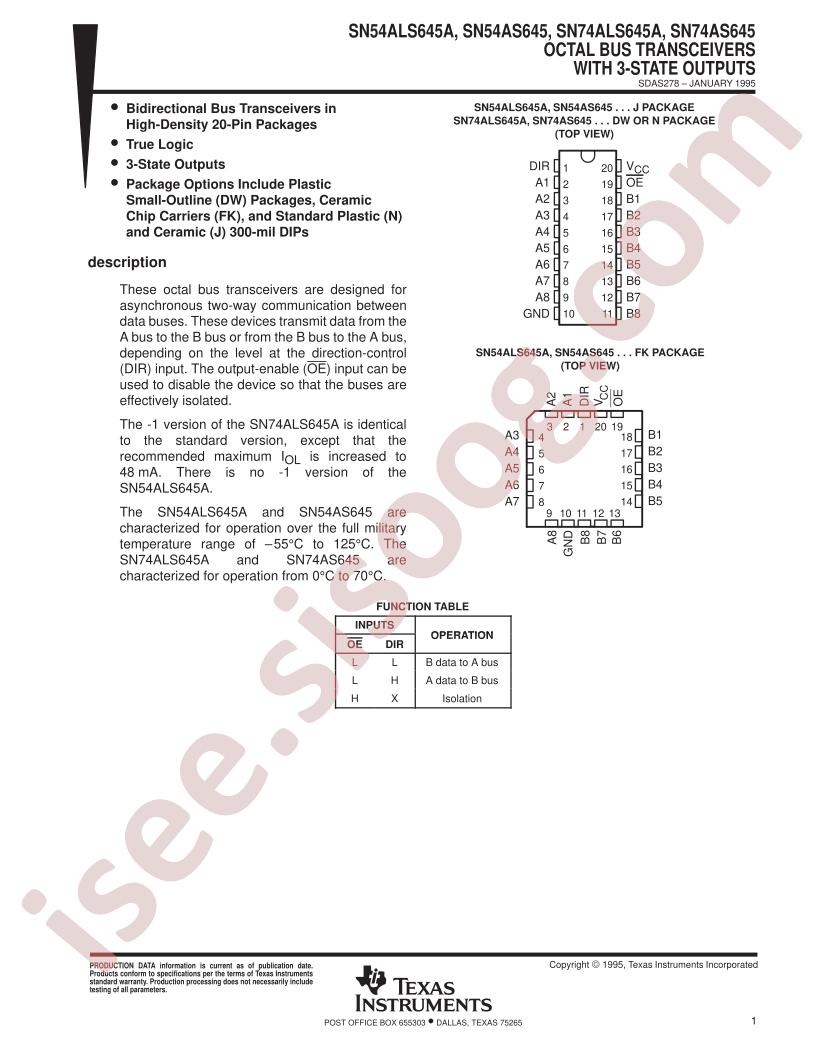

دانلود دیتاشیت SN54ALS645A, SN54AS645, SN74ALS645A, SN74AS645	SN54ALS645A, SN54AS645, SN74ALS645A, SN74AS645 Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74ALS645A-1DWR
Input type: -
output type: Tri-State
Sink Current: 24mA
Source Current: 15mA
Supply Voltage: 4.5V~5.5V
Operating Temperature: 0°C~+70°C
Package: SOIC-20-300mil
Manufacturer: Texas Instruments
Number of Elements: 1
Supplier Device Package: 20-SOIC
Series: 74ALS
Mounting Type: Surface Mount
Base Part Number: SN74ALS6
Packaging: Cut Tape (CT)
Number of Bits per Element: 8
Current - Output High, Low: 15mA, 24mA
Package / Case: 20-SOIC (0.295", 7.50mm Width)
Part Status: Active
Logic Type: Transceiver, Non-Inverting
Voltage - Supply: 4.5V ~ 5.5V
detail: Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC
