دیتاشیت LM2705MF-ADJ/NOPB

LM2705

مشخصات دیتاشیت

نام دیتاشیت LM2705
حجم فایل 1597.08 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت LM2705

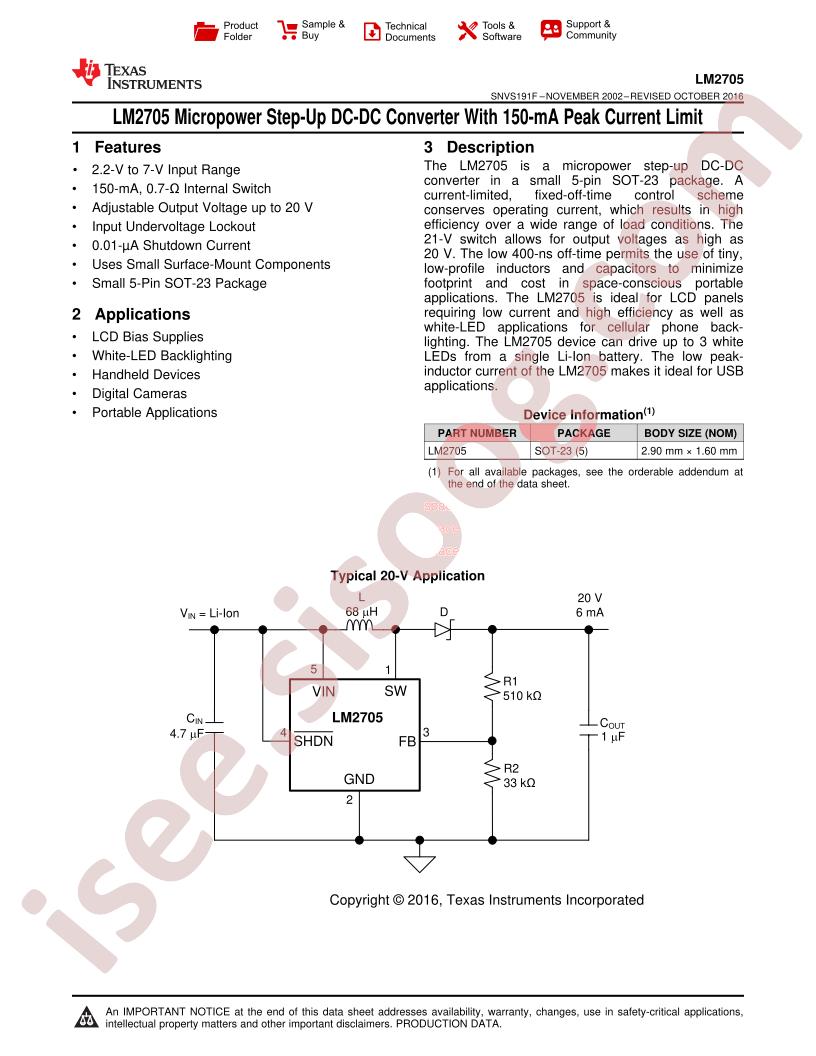

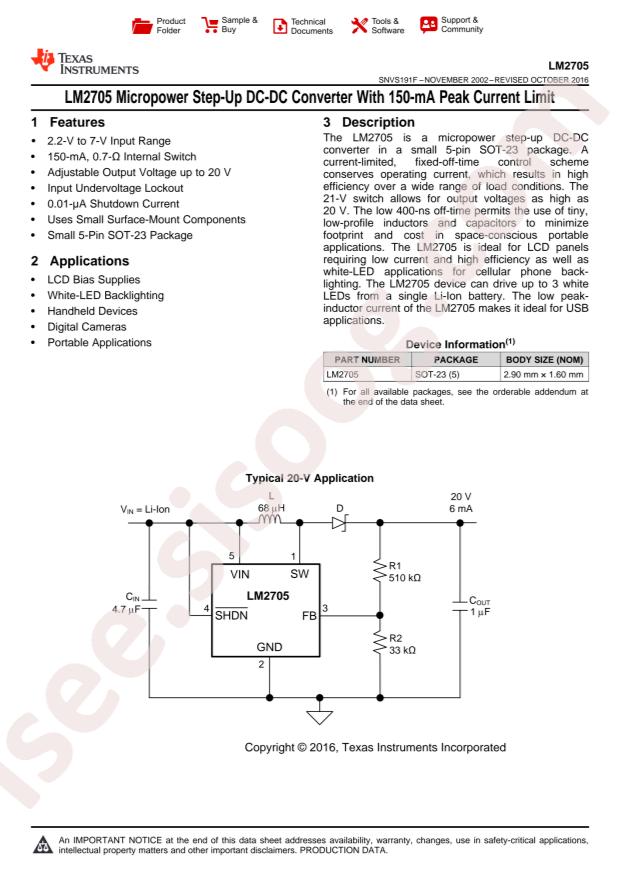

LM2705 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Topology: Boost
  • Datasheet: Texas Instruments LM2705MF-ADJ/NOPB
  • Output Voltage: 20V
  • Number of Outputs: 1
  • Operating Temperature: -40°C~+85°C@(TA)
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Frequency: -
  • Dimming: -
  • Internal Switch(s): Yes
  • Voltage - Output: 20V
  • Base Part Number: LM2705
  • Type: DC DC Regulator
  • Package / Case: SC-74A, SOT-753
  • Supplier Device Package: SOT-23-5
  • Mounting Type: Surface Mount
  • Part Status: Obsolete
  • Voltage - Supply (Max): 7V
  • Voltage - Supply (Min): 2.2V
  • Current - Output / Channel: 150mA
  • Series: -
  • Packaging: Cut Tape (CT)
  • Applications: Backlight
  • detail: LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Dimming 150mA SOT-23-5
