SN74AC74MDREP دیتاشیت

مشخصات دیتاشیت

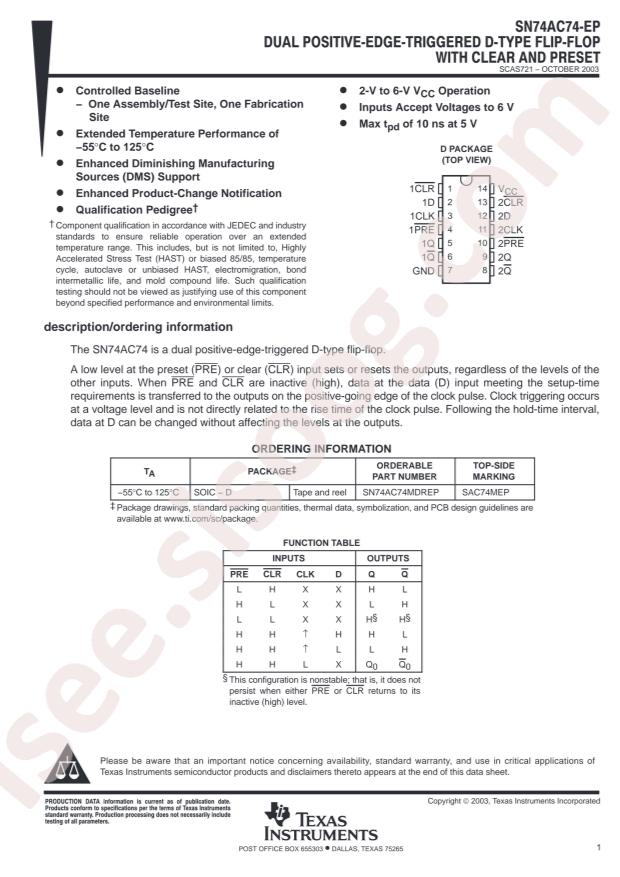

مشاهده دیتاشیت SN74AC74MDREP	دانلود دیتاشیت

RoHS: true
Type: D-Type
Series: 74AC
Category: Logic ICs/Flip Flops
Function: 置位和复位
Datasheet: Texas Instruments SN74AC74MDREP
Output Type: 互补型
Sink Current: 24mA
Trigger Type: 上升沿
Source Current: 24mA
Supply Voltage: 2V~6V
Clock Frequency: 160MHz
Input Capacitance: 3pF
Number of Elements: 2
Operating Temperature: -55°C~+125°C
Quiescent Current (Iq): 2uA
Maximum Propagation Delay: 10ns@5V,50pF
Number of Bits per Element: 1
Package: SOP-14
Manufacturer: Texas Instruments
Supplier Device Package: 14-SOIC
Current - Output High, Low: 24mA, 24mA
Voltage - Supply: 2V ~ 6V
Current - Quiescent (Iq): 2µA
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)
Max Propagation Delay @ V, Max CL: 10ns @ 5V, 50pF
Base Part Number: SN74AC7
Part Status: Active
Package / Case: 14-SOIC (0.154", 3.90mm Width)
detail: Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-SOIC (0.154", 3.90mm Width)
