UCC27282 دیتاشیت

UCC27282

مشخصات دیتاشیت

نام دیتاشیت UCC27282
حجم فایل 2818.382 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

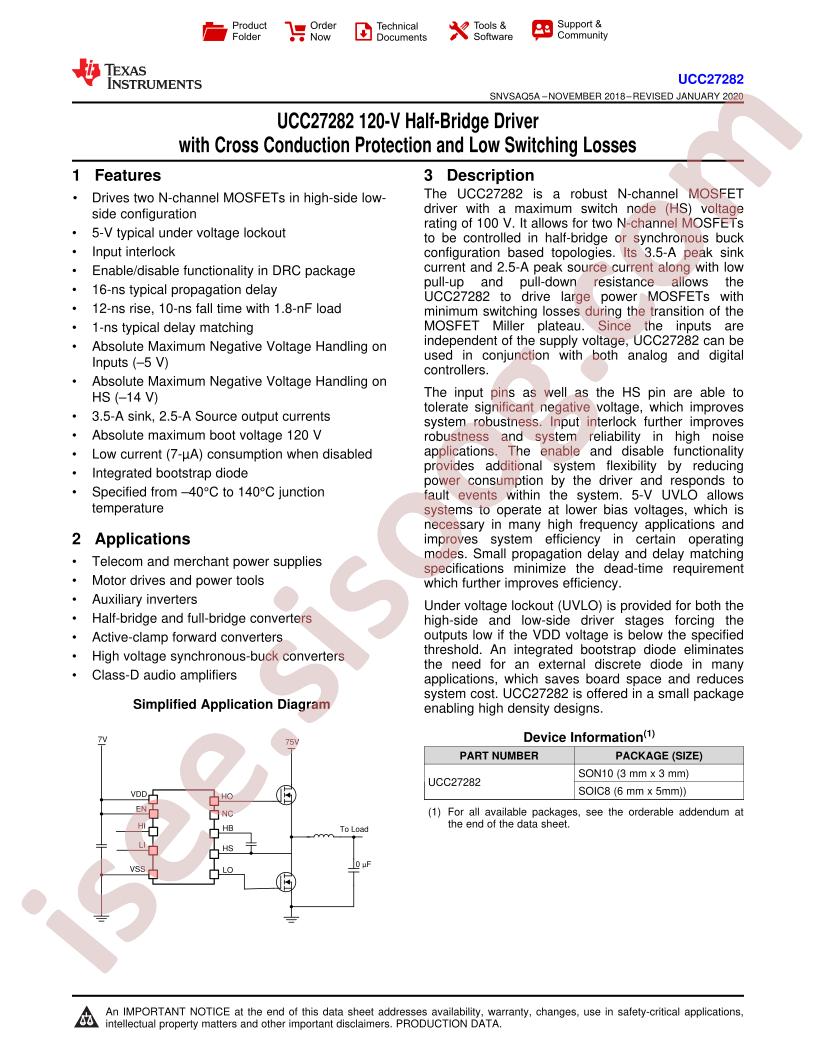

مشاهده دیتاشیت UCC27282

دانلود دیتاشیت

سایر مستندات

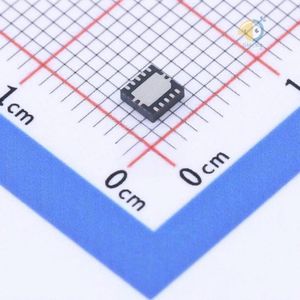

UCC27282DRCR 42 pages

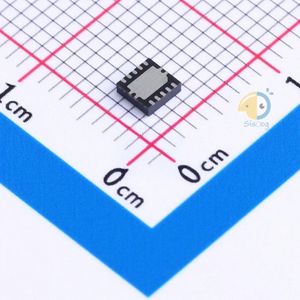

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27282DRCT
  • Fall Time: 10ns
  • Load Type: MOSFET
  • Rise Time: 12ns
  • Supply Voltage: 5.5V~16V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C
  • Peak Output Current(sink): 3.5A
  • Peak Output Current(source): 2.5A
  • Package: DFN-10(3x3)
  • Manufacturer: Texas Instruments
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Rise / Fall Time (Typ): 12ns, 10ns
  • Supplier Device Package: 10-VSON (3x3)
  • Mounting Type: Surface Mount
  • Current - Peak Output (Source, Sink): 2.5A, 3.5A
  • Input Type: Non-Inverting
  • Base Part Number: UCC272
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 5.5V ~ 16V
  • Series: -
  • Package / Case: 10-VFDFN Exposed Pad
  • High Side Voltage - Max (Bootstrap): 120V
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 0.9V, 2.4V
  • detail: Half-Bridge Gate Driver IC Non-Inverting 10-VSON (3x3)
