دیتاشیت UCC25630-2DDBR

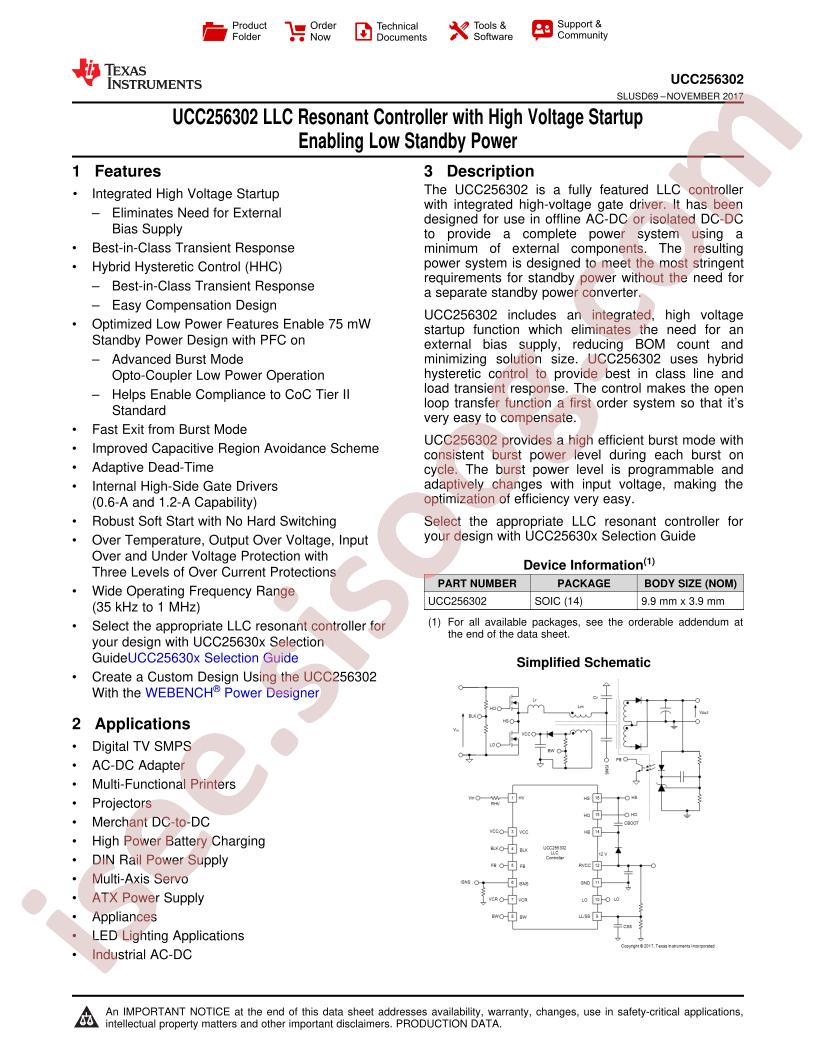

UCC25630-2 Datasheet

مشخصات دیتاشیت

نام دیتاشیت UCC25630-2 Datasheet
حجم فایل 1928.224 کیلوبایت
نوع فایل pdf
تعداد صفحات 66

دانلود دیتاشیت UCC25630-2 Datasheet

UCC25630-2 Datasheet Datasheet

مشخصات

  • Output Phases: 1
  • Series: -
  • Output Configuration: Positive, Isolation Capable
  • Output Type: Transistor Driver
  • Clock Sync: No
  • Topology: Half-Bridge
  • Packaging: Cut Tape (CT)
  • Synchronous Rectifier: No
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): 13V ~ 26V
  • Function: -
  • Supplier Device Package: 14-SOIC
  • Duty Cycle (Max): 50%
  • Serial Interfaces: -
  • Frequency - Switching: 35kHz ~ 1MHz
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Base Part Number: UCC256
  • Number of Outputs: 1
  • Part Status: Active
  • Control Features: Hybrid Hysteretic Control (HHC)
  • Package / Case: 16-SOIC (0.154", 3.90mm Width), 14 Leads
  • detail: Half-Bridge Regulator Positive, Isolation Capable Output DC-DC Controller IC 14-SOIC
