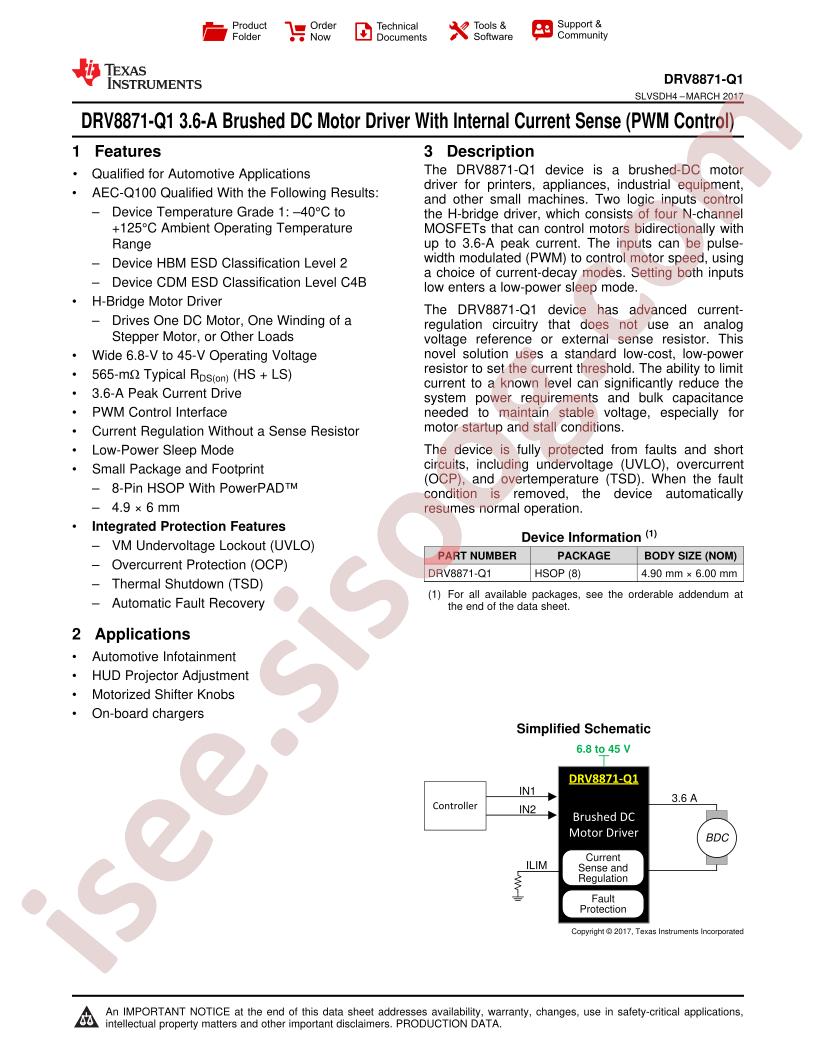

- دیتاشیت DRV8871DDARQ1
DRV8871DDARQ1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | DRV8871DDARQ1 |
|---|---|
| حجم فایل | 93.803 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت DRV8871DDARQ1 |
دانلود دیتاشیت |
|---|
سایر مستندات

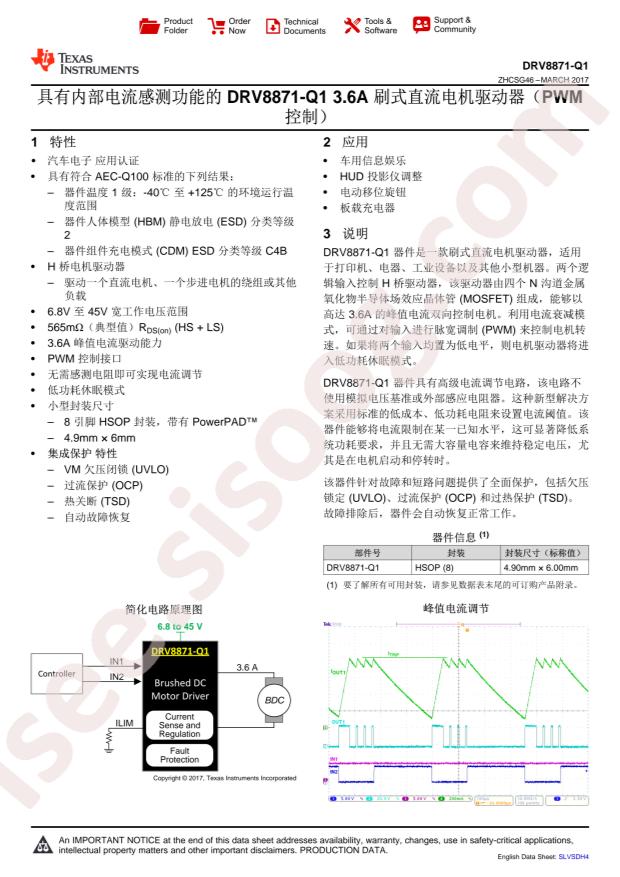

DRV8871-Q1 Datasheet 27 pages
مشخصات فنی
- RoHS: true
- Type: Brush DC Motor
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: Texas Instruments DRV8871DDARQ1
- Interface: PWM
- Output Current: 3.6A
- Supply Voltage: 0V~5.5V
- Operating Temperature: -40°C~+125°C@(Tj)
- Package: SOP-8-EP
- Manufacturer: Texas Instruments
- Motor Type - Stepper: Unipolar
- Function: Driver - Fully Integrated, Control and Power Stage
- Supplier Device Package: 8-SO PowerPad
- Applications: Automotive
- Step Resolution: -
- Voltage - Load: 6.8V ~ 45V
- Mounting Type: Surface Mount
- Voltage - Supply: 0V ~ 5.5V
- Packaging: Cut Tape (CT)
- Motor Type - AC, DC: Brushed DC
- Output Configuration: Full Bridge
- Series: Automotive, AEC-Q100
- Base Part Number: DRV8871
- Package / Case: 8-PowerSOIC (0.154", 3.90mm Width)
- Current - Output: 3.6A
- Part Status: Active
- Technology: NMOS
- detail: Unipolar Motor Driver NMOS PWM 8-SO PowerPad
