TPS76801QDR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TPS76801QDR |
|---|---|
| حجم فایل | 96.493 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت TPS76801QDR |
دانلود دیتاشیت |
|---|
سایر مستندات

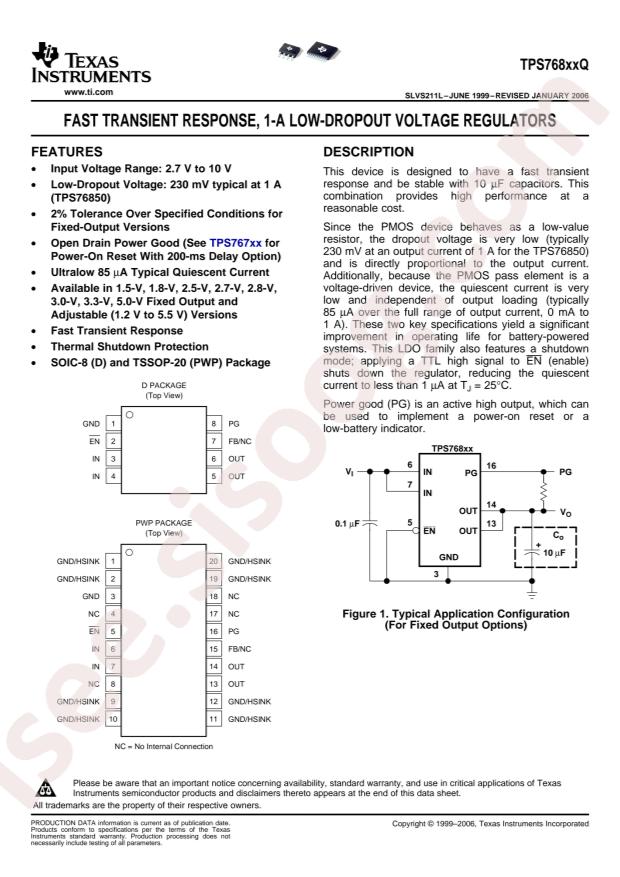

TPS768xxQ Datasheet 27 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS76801QDR
- Output Type: Adjustable
- Output Current: 1A
- Output Voltage: 1.2V~5.5V
- Dropout Voltage: -
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 10V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 125uA
- Power Supply Rejection Ratio (PSRR): 60dB@(1kHz)
- Package: SOP-8
- Manufacturer: Texas Instruments
- Base Part Number: TPS768
- Supplier Device Package: 8-SOIC
- Voltage - Output (Max): 5.5V
- Output Configuration: Positive
- Current - Quiescent (Iq): 125µA
- PSRR: 60dB (1kHz)
- Voltage Dropout (Max): -
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 1.2V
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Series: -
- Voltage - Input (Max): 10V
- Current - Output: 1A
- Part Status: Active
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Control Features: Enable, Power Good
- detail: Linear Voltage Regulator IC 1 Output 1A 8-SOIC
