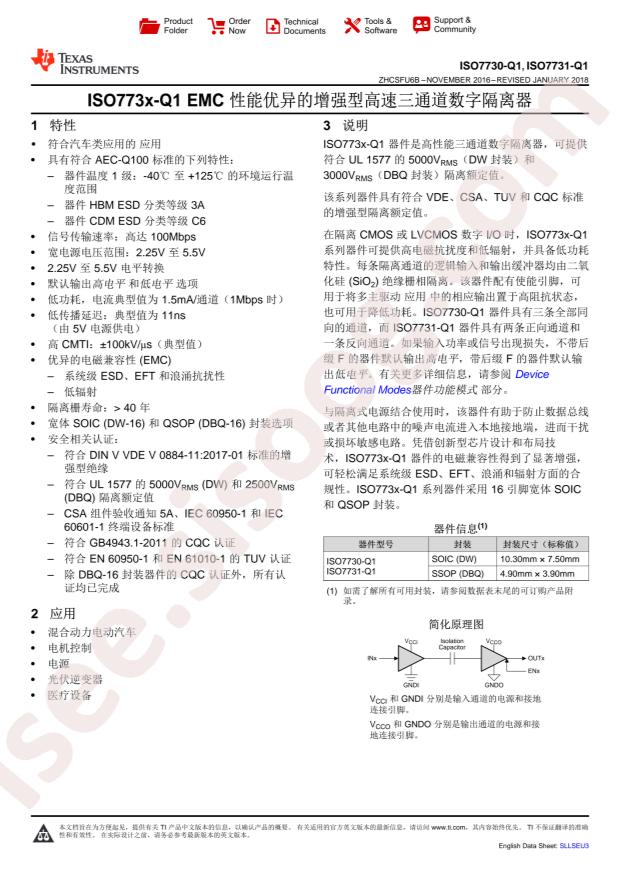

- دیتاشیت ISO7731FQDBQRQ1
ISO7731FQDBQRQ1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ISO7731FQDBQRQ1 |
|---|---|
| حجم فایل | 100.996 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 39 |
دانلود دیتاشیت ISO7731FQDBQRQ1 |
دانلود دیتاشیت |
|---|
سایر مستندات
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Digital Isolators
- Data Rate: 100Mbps
- Datasheet: Texas Instruments ISO7731FQDBQRQ1
- Applications: General-purpose
- Supply Voltage: 2.25V~5.5V
- Forward Channel: 2
- Reverse channel: 1
- Number of Channels: 3
- Isolation Technology: 电容隔离
- Operating Temperature: -40°C~+125°C
- Voltage Isolation or Not: Without voltage isolation
- Package: SSOP-16-150mil-0.635mm
- Manufacturer: Texas Instruments
- Channel Type: Unidirectional
- Pulse Width Distortion (Max): 4.9ns
- Type: General Purpose
- Isolated Power: No
- Series: Automotive, AEC-Q100
- Packaging: Cut Tape (CT)
- Voltage - Supply: 2.25V ~ 5.5V
- Propagation Delay tpLH / tpHL (Max): 16ns, 16ns
- Common Mode Transient Immunity (Min): 85kV/µs
- Technology: Capacitive Coupling
- Supplier Device Package: 16-SSOP
- Base Part Number: ISO773
- Inputs - Side 1/Side 2: 2/1
- Voltage - Isolation: 3000Vrms
- Mounting Type: Surface Mount
- Part Status: Active
- Rise / Fall Time (Typ): 1.3ns, 1.4ns
- Package / Case: 16-SSOP (0.154", 3.90mm Width)
- detail: General Purpose Digital Isolator 3000Vrms 3 Channel 100Mbps 85kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
