دیتاشیت TPS2022DRG4Q1

TPS2022DRG4Q1

مشخصات دیتاشیت

نام دیتاشیت TPS2022DRG4Q1
حجم فایل 111.414 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

TPS2022DRG4Q1

دانلود دیتاشیت

سایر مستندات

TPS2020 - TPS2024 Datasheet 29 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS2022DRG4Q1

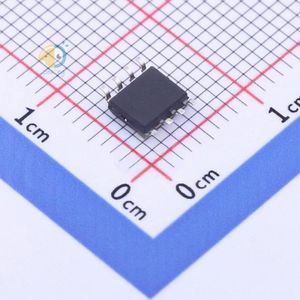

  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Switch Type: General Purpose
  • Base Part Number: TPS202
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Features: Status Flag
  • Voltage - Load: 2.7V ~ 5.5V
  • Number of Outputs: 1
  • Series: -
  • Mounting Type: Surface Mount
  • Output Type: N-Channel
  • Part Status: Active
  • Rds On (Typ): 33mOhm
  • Output Configuration: High Side
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
  • Supplier Device Package: 8-SOIC
  • Input Type: Non-Inverting
  • Current - Output (Max): 1A
  • Interface: On/Off
  • Packaging: Cut Tape (CT)
  • Ratio - Input:Output: 1:1
  • detail: Power Switch/Driver 1:1 N-Channel 1A 8-SOIC
