TPS7A1601AQDGNRQ1 دیتاشیت

TPS7A1601AQDGNRQ1

مشخصات دیتاشیت

نام دیتاشیت TPS7A1601AQDGNRQ1
حجم فایل 82.547 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

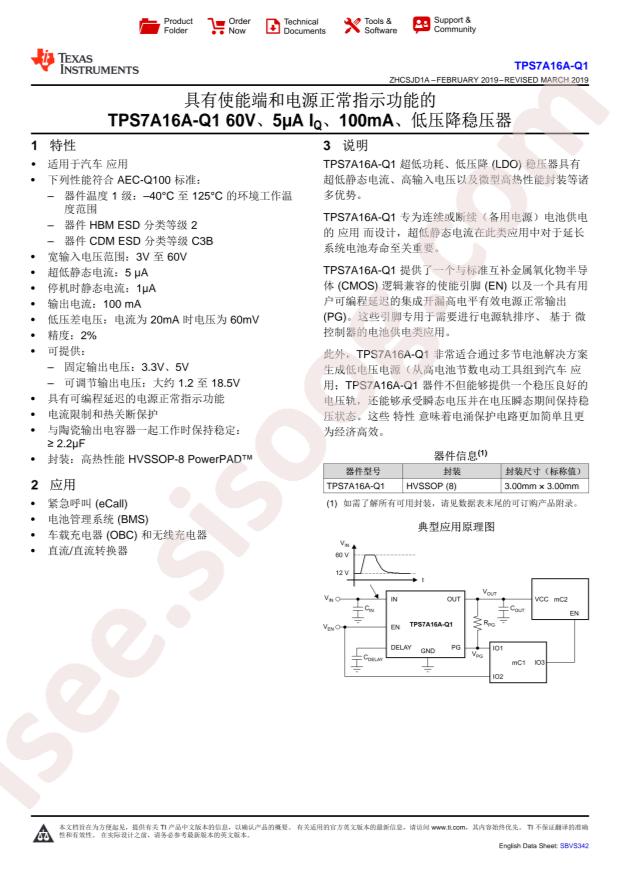

مشاهده دیتاشیت TPS7A1601AQDGNRQ1

دانلود دیتاشیت

سایر مستندات

TPS7A16A-Q1 27 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TPS7A1601AQDGNRQ1
  • Output Type: Adjustable
  • Output Current: 100mA
  • Output Voltage: 1.2V~18.5V
  • Dropout Voltage: 0.265V@(100mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 60V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Quiescent Current (Ground Current): 15uA
  • Power Supply Rejection Ratio (PSRR): 50dB@(100Hz)
  • Package: MSOP-8-EP
  • Manufacturer: Texas Instruments
  • Base Part Number: TPS7A1
  • Supplier Device Package: 8-MSOP-PowerPad
  • Voltage - Output (Max): 18.5V
  • Output Configuration: Positive
  • Current - Quiescent (Iq): 15µA
  • PSRR: 50dB (100Hz)
  • Voltage Dropout (Max): 0.265V @ 100mA
  • Number of Regulators: 1
  • Mounting Type: Surface Mount
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
  • Voltage - Output (Min/Fixed): 1.2V
  • Protection Features: Over Current, Over Temperature, UVLO
  • Series: Automotive, AEC-Q100
  • Voltage - Input (Max): 60V
  • Current - Output: 100mA
  • Part Status: Active
  • Current - Supply (Max): 60µA
  • Control Features: Enable, Power Good
  • detail: Linear Voltage Regulator IC 1 Output 100mA 8-MSOP-PowerPad
