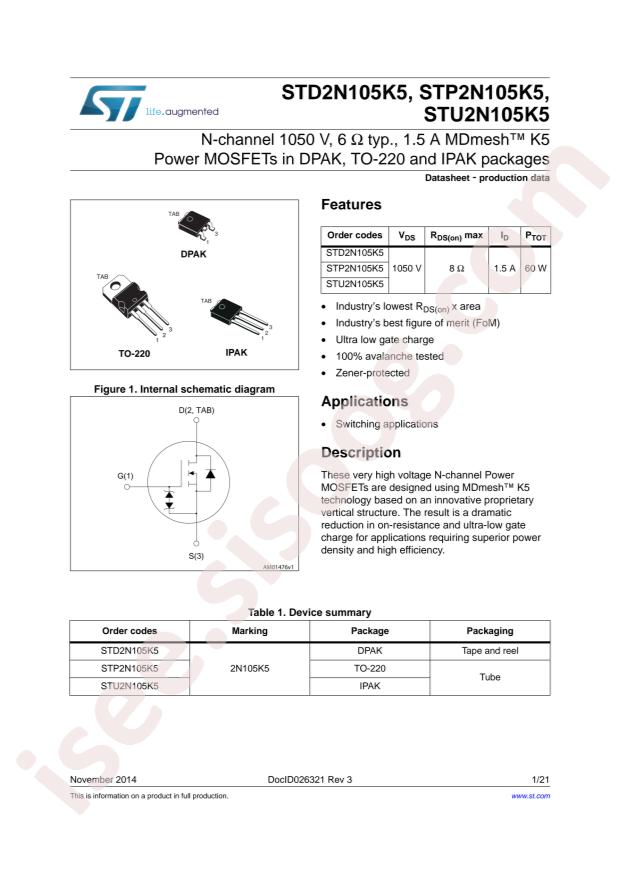

STU2N105K5 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STU2N105K5
|
|
حجم فایل
|
62.158
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
21
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STU2N105K5
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
60W
-
Total Gate Charge (Qg@Vgs):
10nC@10V
-
Drain Source Voltage (Vdss):
1050V
-
Input Capacitance (Ciss@Vds):
115pF@100V
-
Continuous Drain Current (Id):
1.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@100uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
8Ω@750mA,10V
-
Package:
TO-251(IPAK)
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ K5
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
1050V
-
Current - Continuous Drain (Id) @ 25°C:
1.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
8Ohm @ 750mA, 10V
-
Vgs(th) (Max) @ Id:
5V @ 100µA
-
Gate Charge (Qg) (Max) @ Vgs:
10nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
115pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
60W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
IPAK (TO-251)
-
Package / Case:
TO-251-3 Short Leads, IPak, TO-251AA
-
Base Part Number:
STU2N
-
detail:
N-Channel 1050V 1.5A (Tc) 60W (Tc) Through Hole IPAK (TO-251)
