STL150N3LLH5 دیتاشیت

STL150N3LLH5

مشخصات دیتاشیت

نام دیتاشیت STL150N3LLH5
حجم فایل 56.289 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

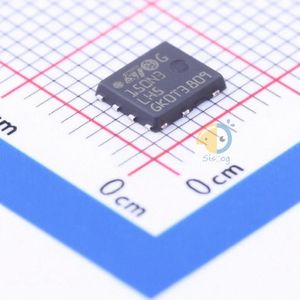

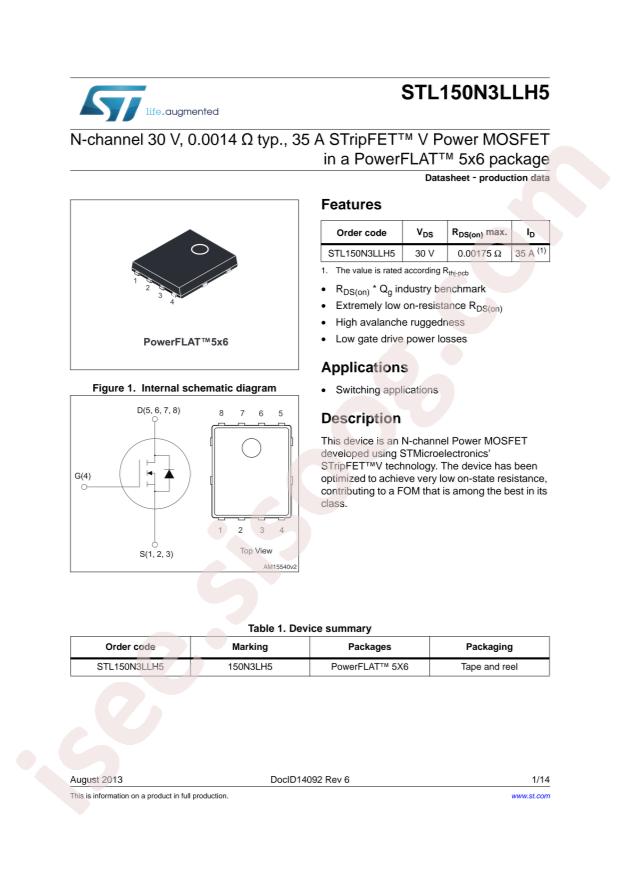

مشاهده دیتاشیت STL150N3LLH5

دانلود دیتاشیت

سایر مستندات

STL150N3LLH5 17 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STL150N3LLH5
  • Power Dissipation (Pd): 114W
  • Drain Source Voltage (Vdss): 30V
  • Continuous Drain Current (Id): 195A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.2V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.75mΩ@10V,17.5A
  • Package: PowerFLAT(5x6)
  • Manufacturer: STMicroelectronics
  • Series: STripFET™ V
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 195A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 1.75mOhm @ 17.5A, 10V
  • Vgs(th) (Max) @ Id: 2.2V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 40nC @ 4.5V
  • Vgs (Max): ±22V
  • Input Capacitance (Ciss) (Max) @ Vds: 5800pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 114W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerFlat™ (5x6)
  • Package / Case: 8-PowerVDFN
  • Base Part Number: STL150
  • detail: N-Channel 30V 195A (Tc) 114W (Tc) Surface Mount PowerFlat™ (5x6)
