دیتاشیت DRV8876NPWPR

DRV8876N

مشخصات دیتاشیت

نام دیتاشیت DRV8876N
حجم فایل 1482.789 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت DRV8876N

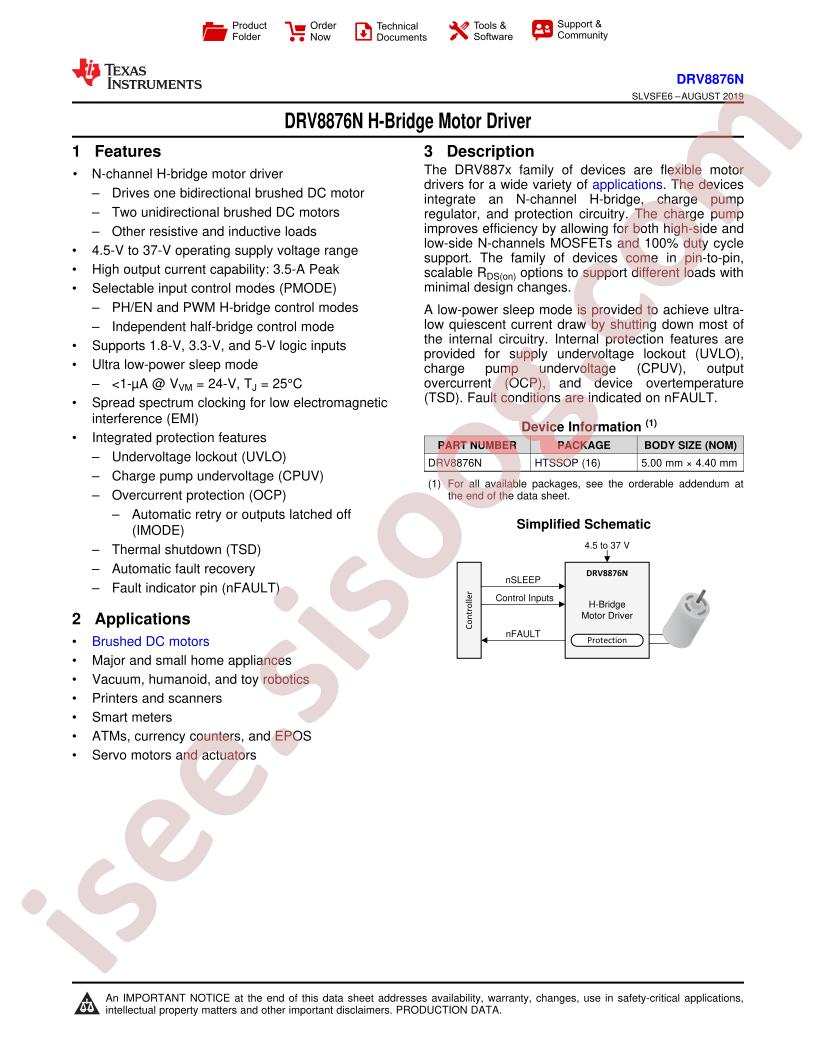

DRV8876N Datasheet

مشخصات

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8876NPWPR
  • Interface: PWM
  • Output Current: 3.5A
  • Supply Voltage: 0V~5.5V
  • Operating Temperature: -40°C~+125°C@(Ta)
  • Package: TSSOP-16-EP
  • Manufacturer: Texas Instruments
  • Motor Type - Stepper: Unipolar
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Supplier Device Package: 16-HTSSOP
  • Applications: DC Motors, General Purpose, Stepper Motors
  • Step Resolution: -
  • Voltage - Load: 4.5V ~ 37V
  • Mounting Type: Surface Mount
  • Voltage - Supply: 0V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Motor Type - AC, DC: Brushed DC
  • Output Configuration: Half Bridge (2)
  • Series: -
  • Base Part Number: DRV887
  • Package / Case: 16-PowerTSSOP (0.173", 4.40mm Width)
  • Current - Output: 3.5A
  • Part Status: Active
  • Technology: NMOS
  • detail: Unipolar Motor Driver NMOS PWM 16-HTSSOP
