SN74LVC2G00WDCTREP دیتاشیت

SN74LVC2G00WDCTREP

مشخصات دیتاشیت

نام دیتاشیت SN74LVC2G00WDCTREP
حجم فایل 90.81 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

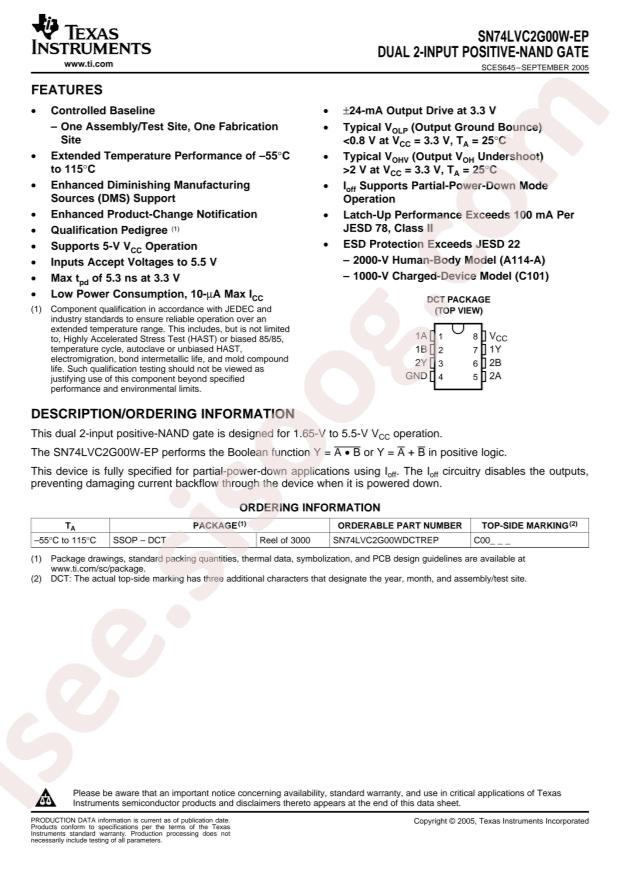

مشاهده دیتاشیت SN74LVC2G00WDCTREP

دانلود دیتاشیت

سایر مستندات

SN74LVC2G00W-EP 9 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74LVC2G00WDCTREP

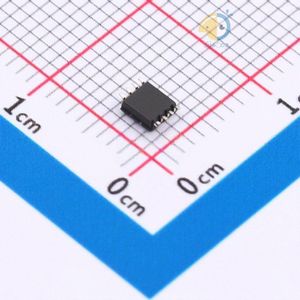

  • Package: TSSOP-8-3mm
  • Manufacturer: Texas Instruments
  • Logic Level - High: 1.7V ~ 2V
  • Base Part Number: SN74LVC2G
  • Supplier Device Package: SM8 (SSOP)
  • Logic Level - Low: 0.7V ~ 0.8V
  • Package / Case: 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
  • Current - Quiescent (Max): 10µA
  • Current - Output High, Low: 32mA, 32mA
  • Features: -
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 1.65V ~ 5.5V
  • Number of Circuits: 2
  • Series: 74LVC
  • Max Propagation Delay @ V, Max CL: 4.3ns @ 5V, 50pF
  • Number of Inputs: 2
  • Operating Temperature: -55°C ~ 115°C
  • Part Status: Active
  • Logic Type: NAND Gate
  • detail: NAND Gate IC 2 Channel SM8 (SSOP)
