TPS63802DLAR 数据手册
其他文档
TPS63802 37 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Datasheet: Texas Instruments TPS63802DLAR

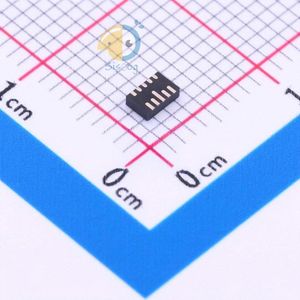

- Package: VSON-10(2x3)
- Manufacturer: Texas Instruments
- Operating Temperature: -40°C ~ 125°C (TJ)
- Function: Step-Up/Step-Down
- Supplier Device Package: 10-VSON-HR (3x2)
- Voltage - Input (Min): 1.3V
- Voltage - Output (Max): 5.2V
- Output Configuration: Positive
- Mounting Type: Surface Mount
- Output Type: Adjustable
- Current - Output: 2A
- Synchronous Rectifier: Yes
- Topology: Buck-Boost
- Frequency - Switching: 2.1MHz
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 1.8V
- Series: -
- Base Part Number: TPS638
- Voltage - Input (Max): 5.5V
- Number of Outputs: 1
- Part Status: Active
- Package / Case: 10-VFDFN
- detail: Buck-Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 2A 10-VFDFN
