STD45N10F7 دیتاشیت

STD45N10F7

مشخصات دیتاشیت

نام دیتاشیت STD45N10F7
حجم فایل 62.606 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

مشاهده دیتاشیت STD45N10F7

دانلود دیتاشیت

سایر مستندات

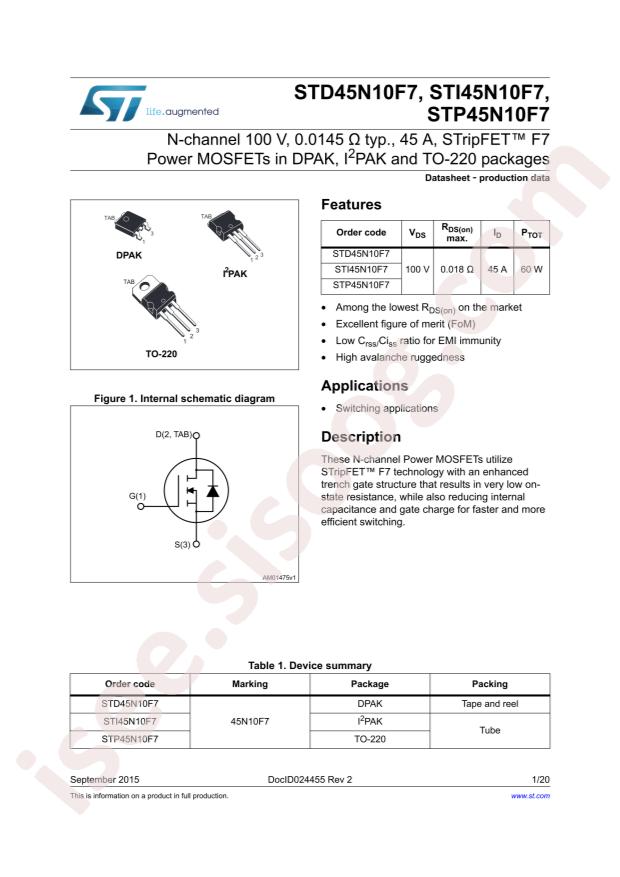

STx45N10F7 20 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD45N10F7
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 60W
  • Total Gate Charge (Qg@Vgs): 25nC@10V
  • Drain Source Voltage (Vdss): 100V
  • Input Capacitance (Ciss@Vds): 1640pF@50V
  • Continuous Drain Current (Id): 45A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 18mΩ@10V,22.5A
  • Package: TO-252-2(DPAK)
  • Manufacturer: STMicroelectronics
  • Series: DeepGATE™, STripFET™ VII
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 45A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 18mOhm @ 22.5A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 25nC @ 10V
  • Vgs (Max): 20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1640pF @ 50V
  • FET Feature: -
  • Power Dissipation (Max): 60W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD45
  • detail: N-Channel 100V 45A (Tc) 60W (Tc) Surface Mount DPAK
