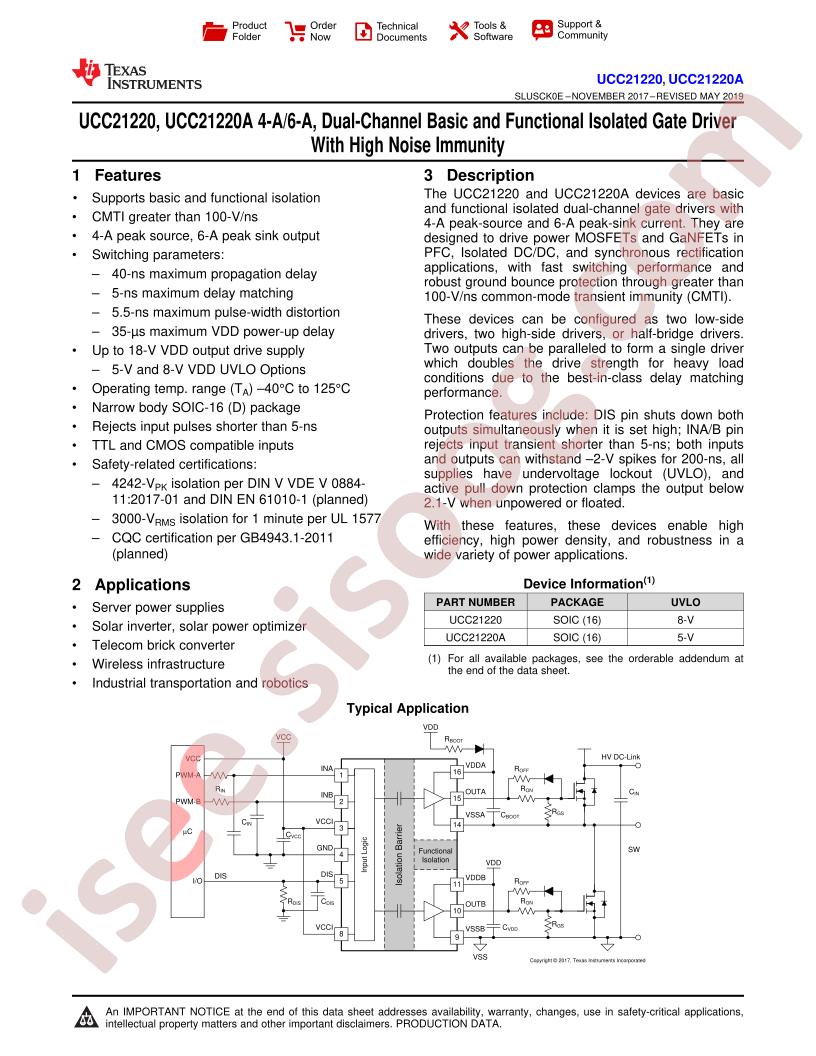

- دیتاشیت UCC21220 Datasheet
UCC21220 Datasheet دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC21220 Datasheet |
|---|---|
| حجم فایل | 1420.296 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 44 |
دانلود دیتاشیت UCC21220 Datasheet |
دانلود دیتاشیت |
|---|
سایر مستندات
UCC21220ADR 45 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Texas Instruments UCC21220DR
- Fall Time: 6ns
- Rise Time: 5ns
- Number of Drivers: 2
- Operating Temperature: -40°C~+125°C
- Peak Output Current(sink): 6A
- Peak Output Current(source): 4A
- Package: SOP-16
- Manufacturer: Texas Instruments
- Pulse Width Distortion (Max): 5.5ns
- Current - Peak Output: -
- Supplier Device Package: 16-SOIC
- Number of Channels: 2
- Mounting Type: Surface Mount
- Voltage - Forward (Vf) (Typ): -
- Voltage - Output Supply: 9.2 ~ 18V
- Current - Output High, Low: 4A, 6A
- Voltage - Isolation: 3000Vrms
- Base Part Number: UCC212
- Packaging: Cut Tape (CT)
- Technology: Capacitive Coupling
- Propagation Delay tpLH / tpHL (Max): 40ns, 40ns
- Series: -
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Common Mode Transient Immunity (Min): 100V/ns
- Part Status: Active
- Rise / Fall Time (Typ): 5ns, 6ns
- detail: Gate Driver Capacitive Coupling 3000Vrms 2 Channel 16-SOIC
