- دیتاشیت SN74LVTH244AQDBREP

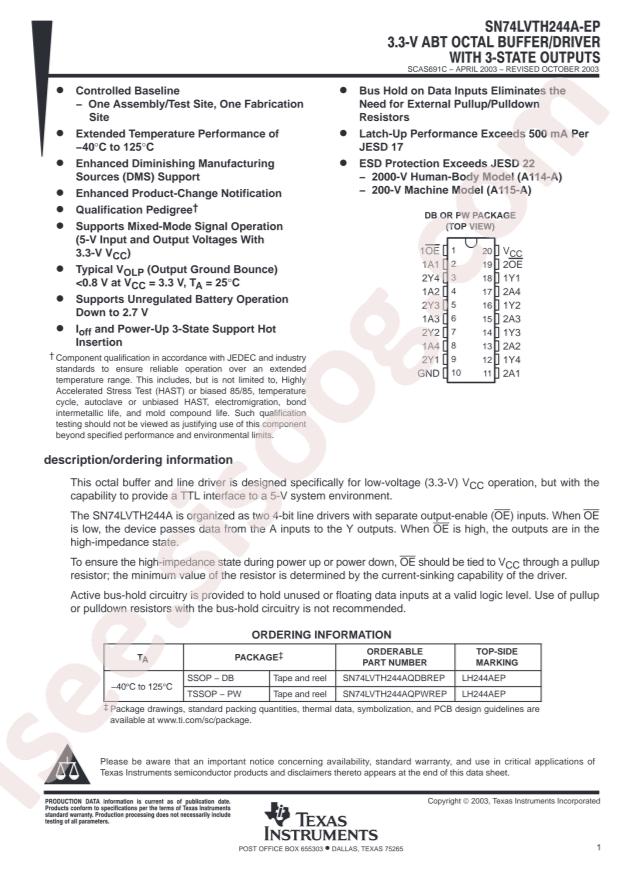

SN74LVTH244AQDBREP دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVTH244AQDBREP |
|---|---|
| حجم فایل | 99.365 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |
دانلود دیتاشیت SN74LVTH244AQDBREP |
دانلود دیتاشیت |
|---|
سایر مستندات
SN74LVTH244A-EP 10 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LVTH244AQDBREP
- output type: Tri-State
- Logic Family: 74LVTH
- Sink Current: 32mA
- Source Current: 24mA
- Supply Voltage: 2.7V~3.6V
- Number of Elements: 2
- Operating Temperature: -40°C~+125°C
- Number of Bits per Element: 4
- Package: SSOP-20
- Manufacturer: Texas Instruments
- Supplier Device Package: 20-SSOP
- Series: 74LVTH
- Mounting Type: Surface Mount
- Base Part Number: SN74LVT
- Packaging: Cut Tape (CT)
- Current - Output High, Low: 24mA, 32mA
- Input Type: -
- Package / Case: 20-SSOP (0.209", 5.30mm Width)
- Part Status: Active
- Logic Type: Buffer, Non-Inverting
- Voltage - Supply: 2.7V ~ 3.6V
- detail: Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-SSOP
