دیتاشیت VND3NV04-1-E

VNx3NV04(-1)

مشخصات دیتاشیت

نام دیتاشیت VNx3NV04(-1)
حجم فایل 363.845 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت VNx3NV04(-1)

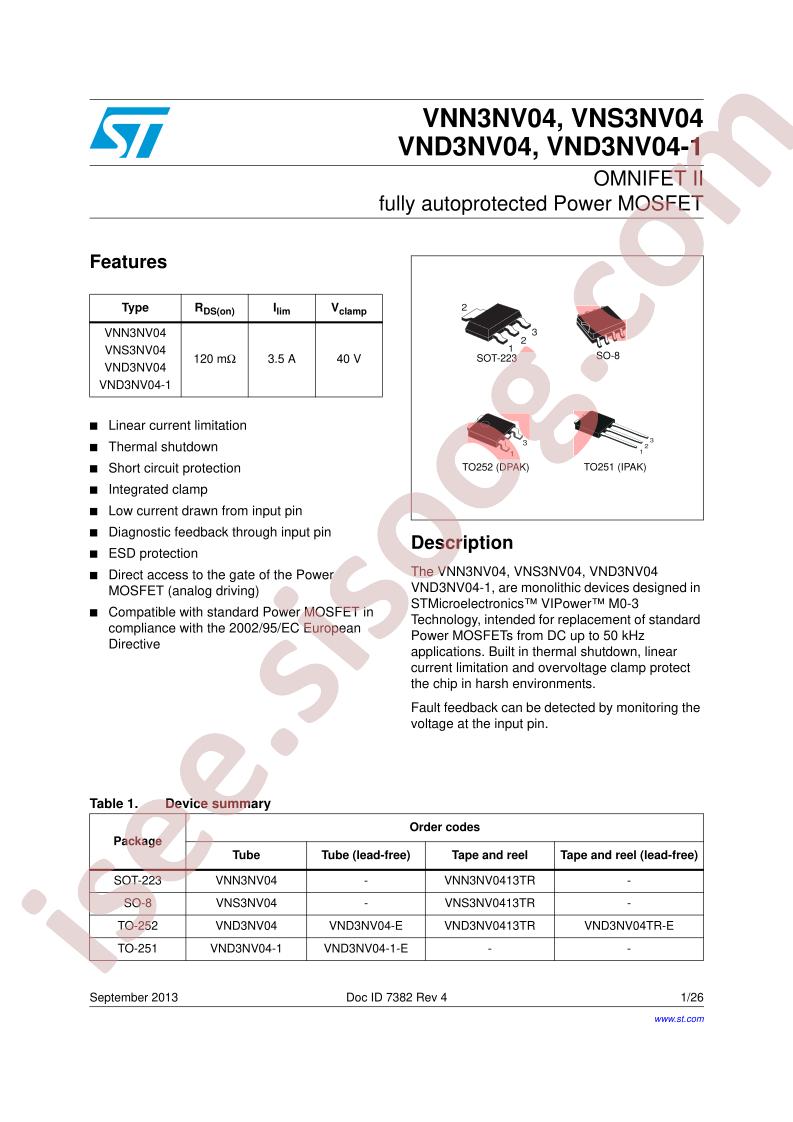

VNx3NV04(-1) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: OMNIFET II™, VIPower™
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 36V (Max)
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 3.5A
  • Rds On (Typ): 120mOhm (Max)
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: I-PAK
  • Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
  • Base Part Number: VND3N
  • detail: Power Switch/Driver 1:1 N-Channel 3.5A I-PAK
