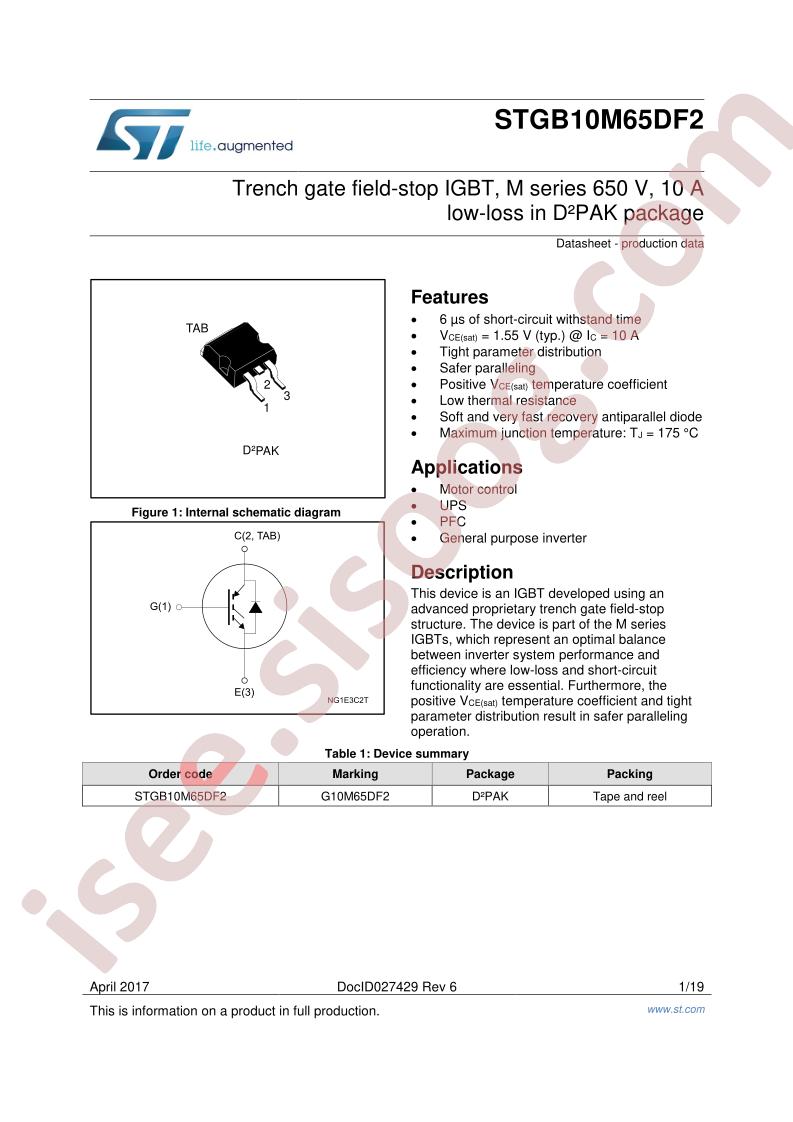

STGB10M65DF2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGB10M65DF2
|
|
حجم فایل
|
1163.375
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
19
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
20A
-
Current - Collector Pulsed (Icm):
40A
-
Vce(on) (Max) @ Vge, Ic:
2V @ 15V, 10A
-
Power - Max:
115W
-
Switching Energy:
120µJ (on), 270µJ (off)
-
Input Type:
Standard
-
Gate Charge:
28nC
-
Td (on/off) @ 25°C:
19ns/91ns
-
Test Condition:
400V, 10A, 22Ohm, 15V
-
Reverse Recovery Time (trr):
96ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Supplier Device Package:
D2PAK
-
Base Part Number:
STGB10
-
detail:
IGBT Trench Field Stop 650V 20A 115W Surface Mount D2PAK
