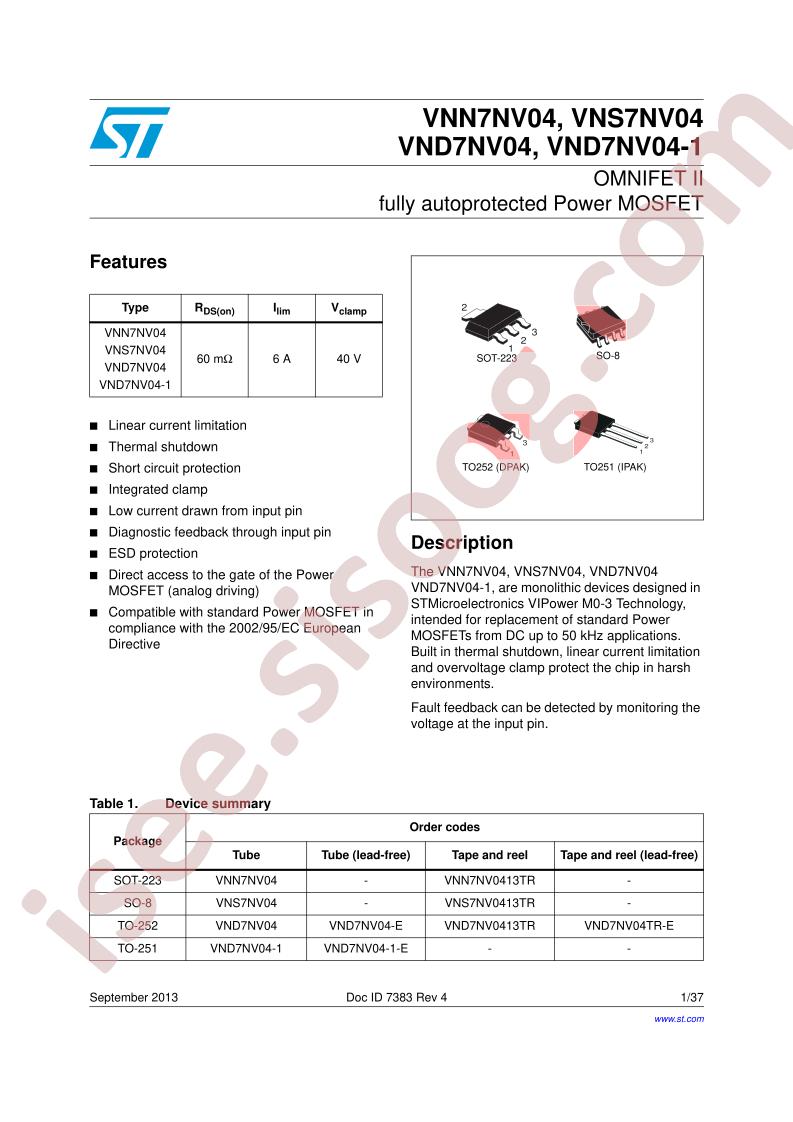

دیتاشیت VND7NV04-1-E
مشخصات دیتاشیت
| نام دیتاشیت |
VNx7NV04(-1)
|
| حجم فایل |
467.599
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
37
|
مشخصات
-
Manufacturer:
STMicroelectronics
-
Series:
OMNIFET II™, VIPower™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Switch Type:
General Purpose
-
Number of Outputs:
1
-
Ratio - Input:Output:
1:1
-
Output Configuration:
Low Side
-
Output Type:
N-Channel
-
Interface:
On/Off
-
Voltage - Load:
36V (Max)
-
Voltage - Supply (Vcc/Vdd):
Not Required
-
Current - Output (Max):
6A
-
Rds On (Typ):
60mOhm (Max)
-
Input Type:
Non-Inverting
-
Features:
-
-
Fault Protection:
Current Limiting (Fixed), Over Temperature, Over Voltage
-
Operating Temperature:
-40°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
I-PAK
-
Package / Case:
TO-251-3 Short Leads, IPak, TO-251AA
-
Base Part Number:
VND7N
-
detail:
Power Switch/Driver 1:1 N-Channel 6A I-PAK
