CSD19505KTT دیتاشیت

CSD19505KTT

مشخصات دیتاشیت

نام دیتاشیت CSD19505KTT
حجم فایل 82.549 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

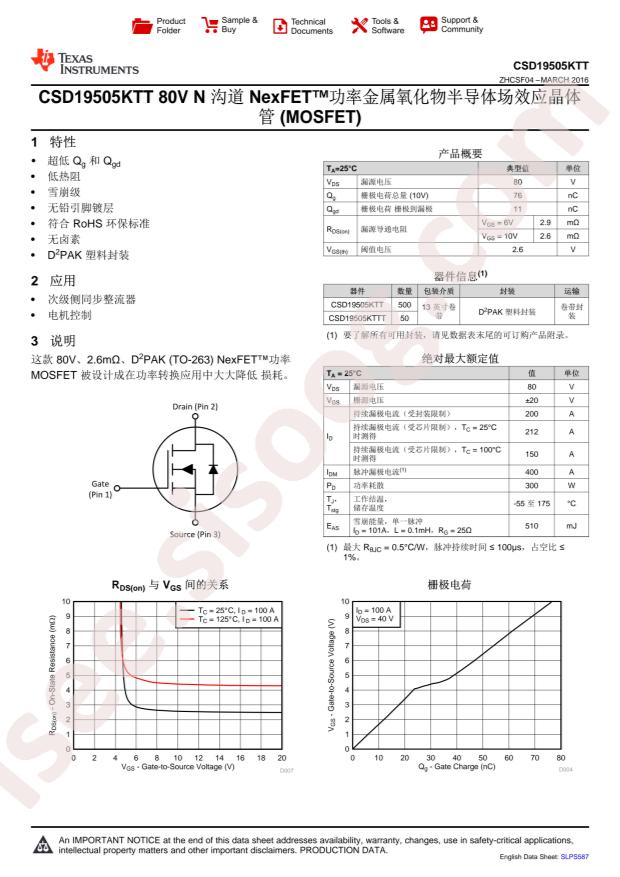

مشاهده دیتاشیت CSD19505KTT

دانلود دیتاشیت

سایر مستندات

CSD19505KTT Datasheet 12 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD19505KTT
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 300W
  • Total Gate Charge (Qg@Vgs): 76nC@10V
  • Drain Source Voltage (Vdss): 80V
  • Input Capacitance (Ciss@Vds): 7920pF@40V
  • Continuous Drain Current (Id): 200A
  • Gate Threshold Voltage (Vgs(th)@Id): 3.2V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 3.1mΩ@100A,10V
  • Package: TO-263-3
  • Manufacturer: Texas Instruments
  • FET Type: N-Channel
  • Vgs(th) (Max) @ Id: 3.2V @ 250µA
  • Base Part Number: CSD1950
  • Supplier Device Package: DDPAK/TO-263-3
  • Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 7920pF @ 40V
  • FET Feature: -
  • Drain to Source Voltage (Vdss): 80V
  • Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
  • Mounting Type: Surface Mount
  • Rds On (Max) @ Id, Vgs: 3.1mOhm @ 100A, 10V
  • Packaging: Cut Tape (CT)
  • Series: NexFET™
  • Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
  • Gate Charge (Qg) (Max) @ Vgs: 76nC @ 10V
  • Vgs (Max): ±20V
  • Part Status: Active
  • Power Dissipation (Max): 300W (Tc)
  • Technology: MOSFET (Metal Oxide)
  • detail: N-Channel 80V 200A (Ta) 300W (Tc) Surface Mount DDPAK/TO-263-3
