VN5E025MJ-E دیتاشیت

VN5E025MJ-E

مشخصات دیتاشیت

نام دیتاشیت VN5E025MJ-E
حجم فایل 710.524 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

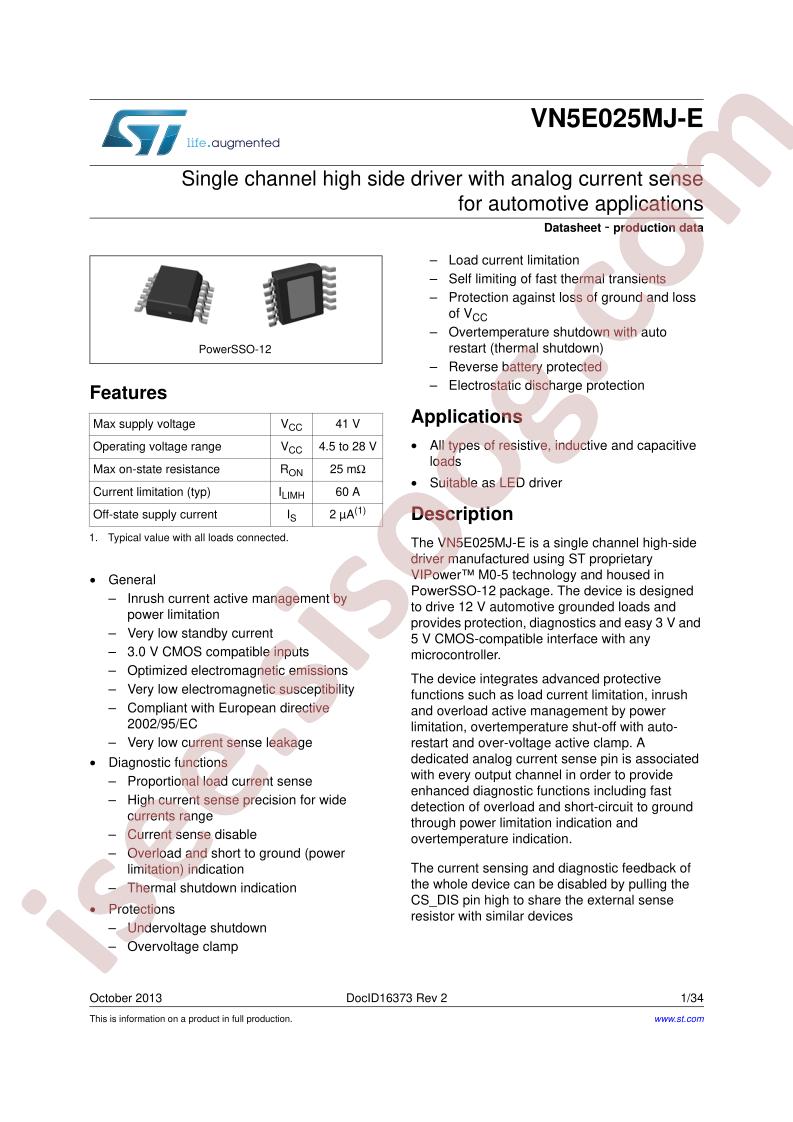

مشاهده دیتاشیت VN5E025MJ-E

دانلود دیتاشیت

سایر مستندات

VN5E025MJTR-E 34 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics VN5E025MJ-E
  • Package: PowerSSO-12
  • Manufacturer: STMicroelectronics
  • Series: VIPower™
  • Packaging: Tube
  • Part Status: Active
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 4.5V ~ 28V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 43A
  • Rds On (Typ): 25mOhm (Max)
  • Input Type: Non-Inverting
  • Features: Auto Restart
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerSSO-12™
  • Package / Case: PowerSSO-12
  • Base Part Number: VN5E025
  • detail: Power Switch/Driver 1:1 N-Channel 43A PowerSSO-12™
