TPS27S100x Datasheet دیتاشیت

TPS27S100x Datasheet

مشخصات دیتاشیت

نام دیتاشیت TPS27S100x Datasheet
حجم فایل 1770.203 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

دانلود دیتاشیت TPS27S100x Datasheet

دانلود دیتاشیت

سایر مستندات

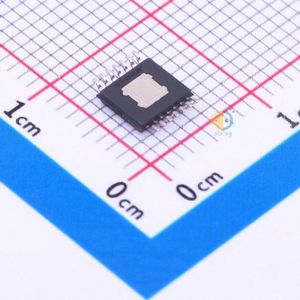

TPS27S100APWPR 41 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS27S100BRRKR
  • Package: QFN-16-EP(3.5x4)
  • Manufacturer: Texas Instruments
  • Rds On (Typ): 80mOhm
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Switch Type: Relay, Solenoid Driver
  • Supplier Device Package: 16-WQFN (4x3.5)
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Features: Shutdown
  • Fault Protection: Over Load, Over Temperature, Short Circuit, UVLO
  • Voltage - Load: 4V ~ 40V
  • Base Part Number: TPS27S
  • Interface: Logic
  • Packaging: Cut Tape (CT)
  • Ratio - Input:Output: 1:1
  • Series: -
  • Input Type: Non-Inverting
  • Package / Case: 16-WFQFN Exposed Pad
  • Number of Outputs: 1
  • Part Status: Active
  • Current - Output (Max): 13A
  • detail: Power Switch/Driver 1:1 N-Channel 13A 16-WQFN (4x3.5)
