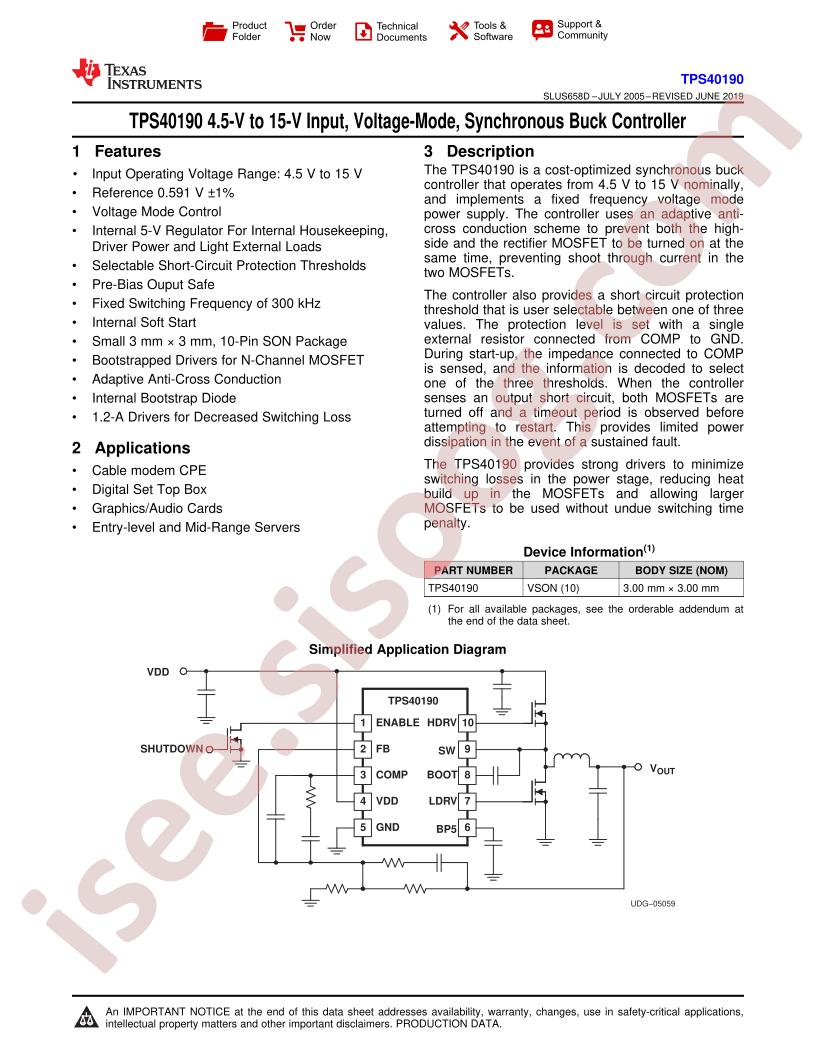

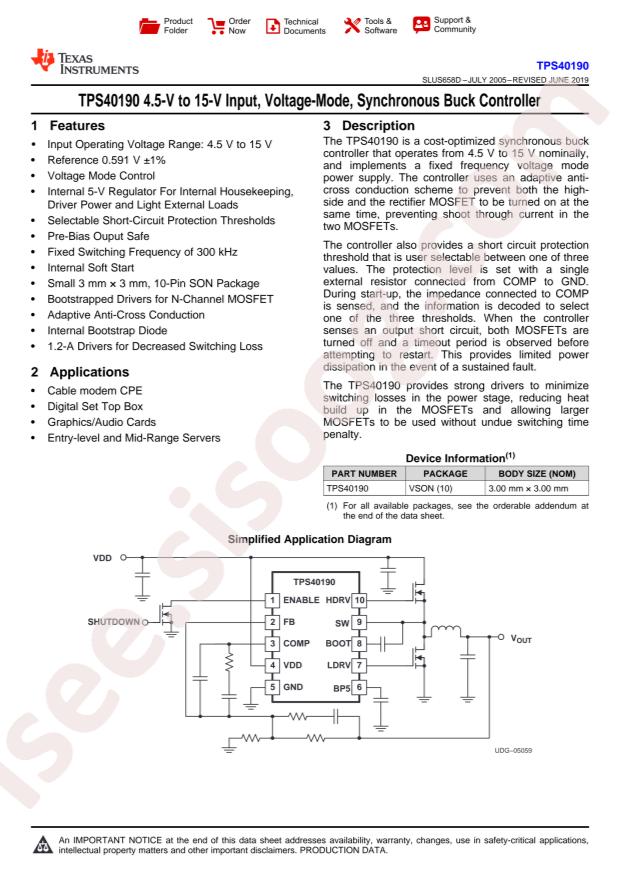

دیتاشیت TPS40190DRCR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS40190
|
| حجم فایل |
1923.41
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
29
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Controllers
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS40190DRCR
-
Input Voltage:
4.5V~15V
-
Duty Cycle (Max):
85%
-
Number of Outputs:
1
-
Switching Frequency:
300kHz
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
DFN-10(3x3)
-
Manufacturer:
Texas Instruments
-
Output Phases:
1
-
Series:
-
-
Output Configuration:
Positive
-
Output Type:
Transistor Driver
-
Clock Sync:
No
-
Packaging:
Cut Tape (CT)
-
Synchronous Rectifier:
Yes
-
Voltage - Supply (Vcc/Vdd):
4.5V ~ 15V
-
Supplier Device Package:
10-VSON (3x3)
-
Serial Interfaces:
-
-
Frequency - Switching:
300kHz
-
Mounting Type:
Surface Mount
-
Base Part Number:
TPS401
-
Part Status:
Active
-
Control Features:
Enable
-
Package / Case:
10-VFDFN Exposed Pad
-
detail:

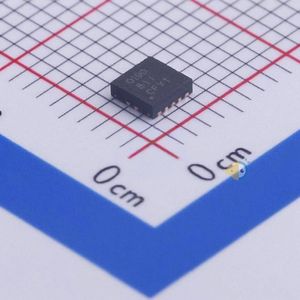

Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-VSON (3x3)
