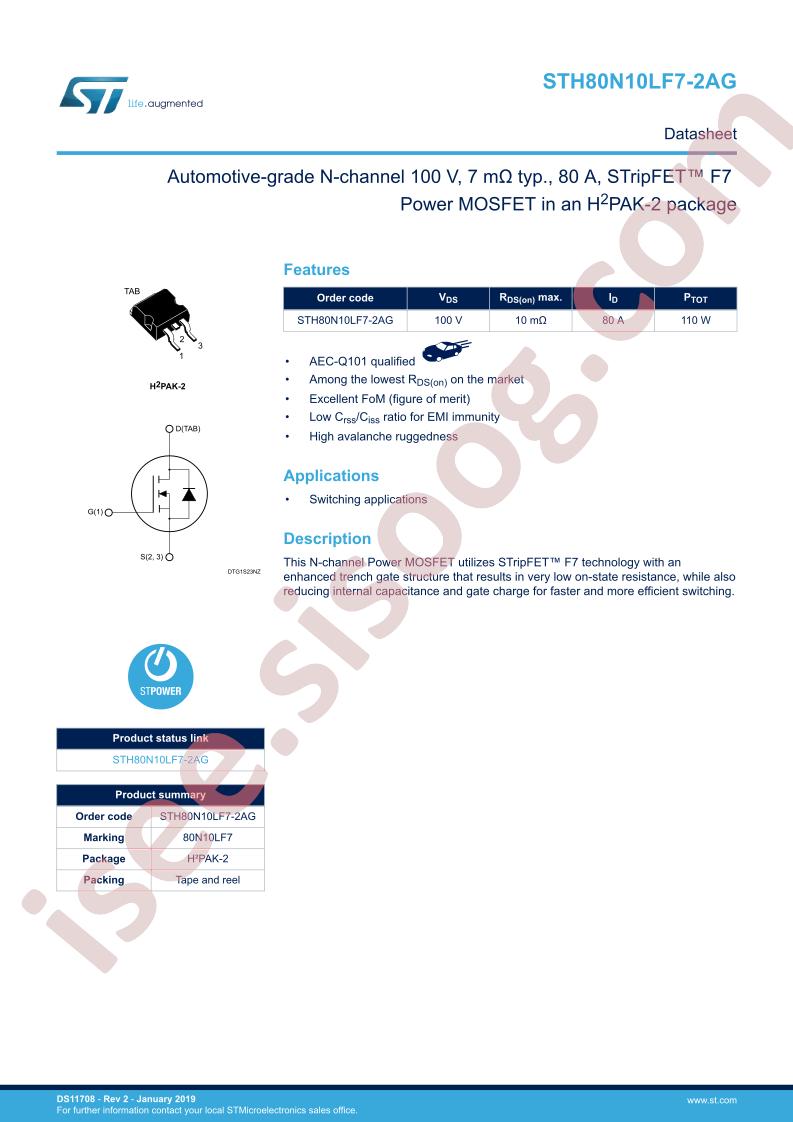

STH80N10LF7-2AG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STH80N10LF7-2AG
|
|
حجم فایل
|
636.852
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
Automotive, AEC-Q101, STripFET™
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
80A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
10mOhm @ 40A, 10V
-
Gate Charge (Qg) (Max) @ Vgs:
28.3nC @ 4.5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
2900pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
110W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
H2Pak-2
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
detail:
N-Channel 100V 80A (Tc) 110W (Tc) Surface Mount H2Pak-2
