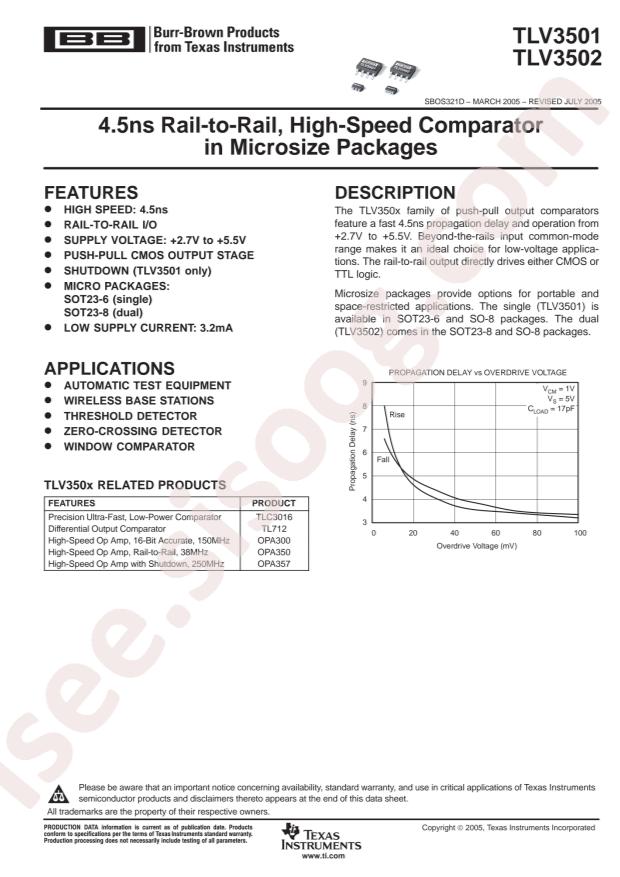

دیتاشیت TLV3501AIDR
مشخصات دیتاشیت
| نام دیتاشیت | TLV3501, TLV3502 |
|---|---|
| حجم فایل | 1507.041 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |
دانلود دیتاشیت TLV3501, TLV3502 |
TLV3501, TLV3502 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Texas Instruments TLV3501AIDR
- Output Type: 开集
- Supply Current: 5mA
- Supply Voltage: 2.7V~5.5V;1.35V~2.75V
- Number of Elements: 1
- Operating Temperature: -40°C~+125°C
- Propagation Delay Time: 10ns
- Input Bias Current (Ib): 10pA
- Input Offset Voltage (Vos): 6.5mV
- Input Hysteresis Voltage (Vhys): 6mV
- Common Mode Rejection Ratio (CMRR): -
- Package: SOP-8
- Manufacturer: Texas Instruments
- Voltage - Input Offset (Max): 6.5mV @ 5.5V
- Type: General Purpose
- Supplier Device Package: 8-SOIC
- Mounting Type: Surface Mount
- Current - Quiescent (Max): 5mA
- Propagation Delay (Max): 10ns
- Current - Input Bias (Max): 10pA @ 5.5V
- Base Part Number: TLV350
- Packaging: Cut Tape (CT)
- Hysteresis: 6mV
- Series: -
- Current - Output (Typ): -
- CMRR, PSRR (Typ): 70dB CMRR, 100dB PSRR
- Part Status: Active
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V, ±1.35V ~ 2.75V
- detail: Comparator General Purpose CMOS, Push-Pull, Rail-to-Rail, TTL 8-SOIC
