دیتاشیت TPA3130D2DAPR

TPA31xxD2

مشخصات دیتاشیت

نام دیتاشیت TPA31xxD2
حجم فایل 3099.443 کیلوبایت
نوع فایل pdf
تعداد صفحات 48

دانلود دیتاشیت TPA31xxD2

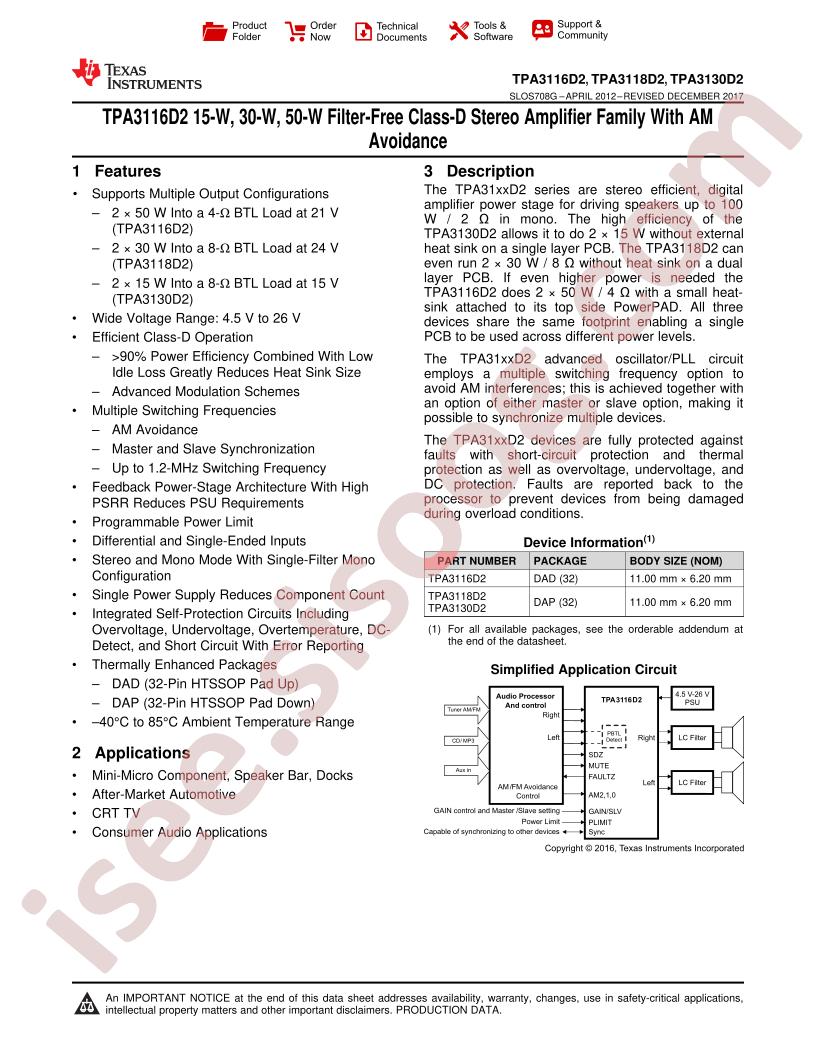

TPA31xxD2 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Audio Power OpAmps
  • Datasheet: Texas Instruments TPA3130D2DAPR
  • Output Power: 15Wx2@8Ω
  • Supply Voltage: 4.5V~26V
  • Speaker Channels: 2
  • Type of Power Amplifier: Class D
  • Package: TSSOP-32-EP-6.1mm
  • Manufacturer: Texas Instruments
  • Type: Class D
  • Supplier Device Package: 32-HTSSOP
  • Mounting Type: Surface Mount
  • Features: Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown
  • Output Type: 2-Channel (Stereo)
  • Base Part Number: TPA313
  • Packaging: Cut Tape (CT)
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Series: SpeakerGuard™
  • Max Output Power x Channels @ Load: 15W x 2 @ 8Ohm
  • Package / Case: 32-PowerTSSOP (0.240", 6.10mm Width)
  • Part Status: Active
  • Voltage - Supply: 4.5V ~ 26V
  • detail: Amplifier IC 2-Channel (Stereo) Class D 32-HTSSOP
