دیتاشیت STM8AL3138TCX
مشخصات دیتاشیت
| نام دیتاشیت | STM8AL31xx, STM8AL3Lxx |
|---|---|
| حجم فایل | 2481.606 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 123 |

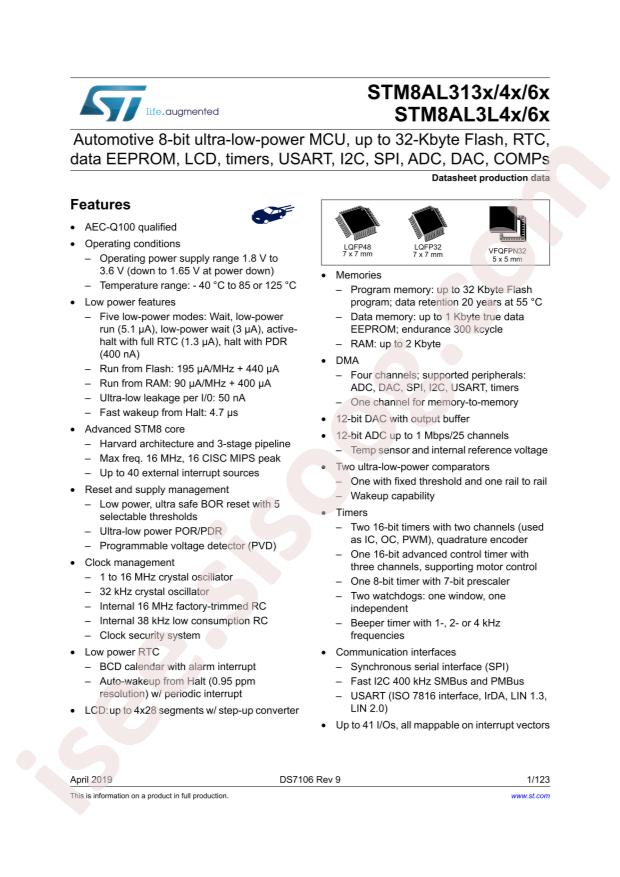

دانلود دیتاشیت STM8AL31xx, STM8AL3Lxx |
STM8AL31xx, STM8AL3Lxx Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: STM8
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 2KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: STMicroelectronics STM8AL3138TCX
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 16MHz
- GPIO Ports Number: 41
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 8KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.65V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+125°C
- Secure Digital Input and Output: -
- Package: LQFP-48(7x7)
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q100, STM8A
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Core Processor: STM8
- Core Size: 8-Bit
- Speed: 16MHz
- Connectivity: I²C, IrDA, LINbus, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
- Number of I/O: 41
- Program Memory Size: 8KB (8K x 8)
- EEPROM Size: 1K x 8
- Voltage - Supply (Vcc/Vdd): 1.65V ~ 3.6V
- Data Converters: A/D 25x12b; D/A 1x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 48-LQFP
- Supplier Device Package: 48-LQFP (7x7)
- Base Part Number: STM8AL
- detail: STM8 Automotive, AEC-Q100, STM8A Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 48-LQFP (7x7)
