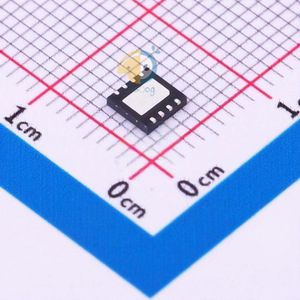

LM25180NGUR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت LM25180NGUR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Buck-boost type
Topology: Flyback
Datasheet: Texas Instruments LM25180NGUR
Output Type: Fixed
Input Voltage: 4.5V~42V
Output Voltage: 1.21V~65V
Number of Outputs: 1
Switching Frequency: 350kHz
Output Current (Max): -
Operating Temperature: -40°C~+150°C@(TJ)
Synchronous Rectification: NO
Package: DFN-8(4x4)
Manufacturer: Texas Instruments
Supplier Device Package: 8-WSON (4x4)
Voltage - Input (Min): 4.5V
Voltage - Output (Max): 65V (Switch)
Output Configuration: Positive
Mounting Type: Surface Mount, Wettable Flank
Current - Output: -
Synchronous Rectifier: No
Frequency - Switching: 12kHz ~ 350kHz
Packaging: Cut Tape (CT)
Voltage - Output (Min/Fixed): 1.21V
Series: -
Base Part Number: LM2518
Voltage - Input (Max): 42V
Part Status: Active
Package / Case: 8-WDFN Exposed Pad
detail: Flyback Switching Regulator IC Positive Fixed 1.21V 1 Output 8-WDFN Exposed Pad
