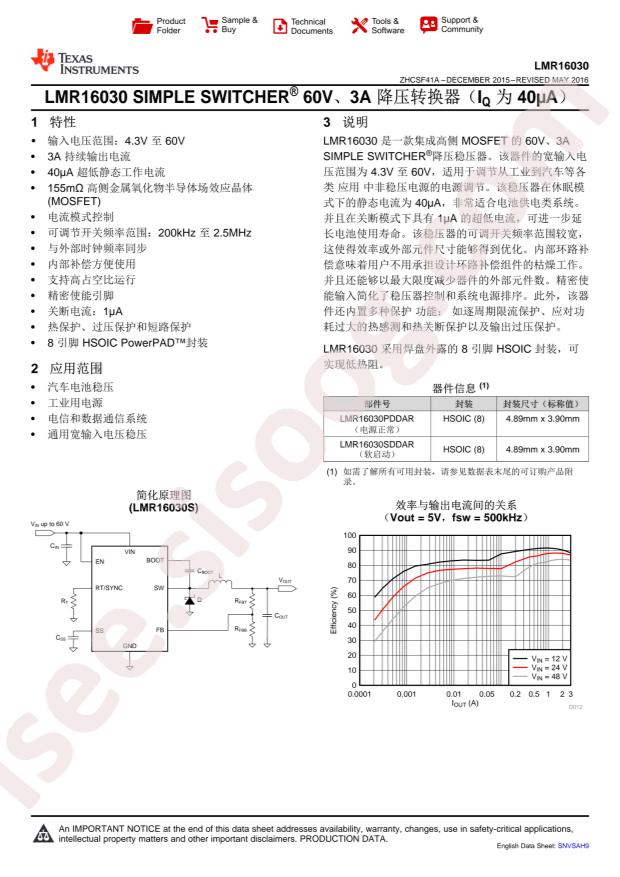

دیتاشیت LMR16030PDDAR
مشخصات دیتاشیت
| نام دیتاشیت | LMR16030 Datasheet |
|---|---|
| حجم فایل | 2714.524 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |

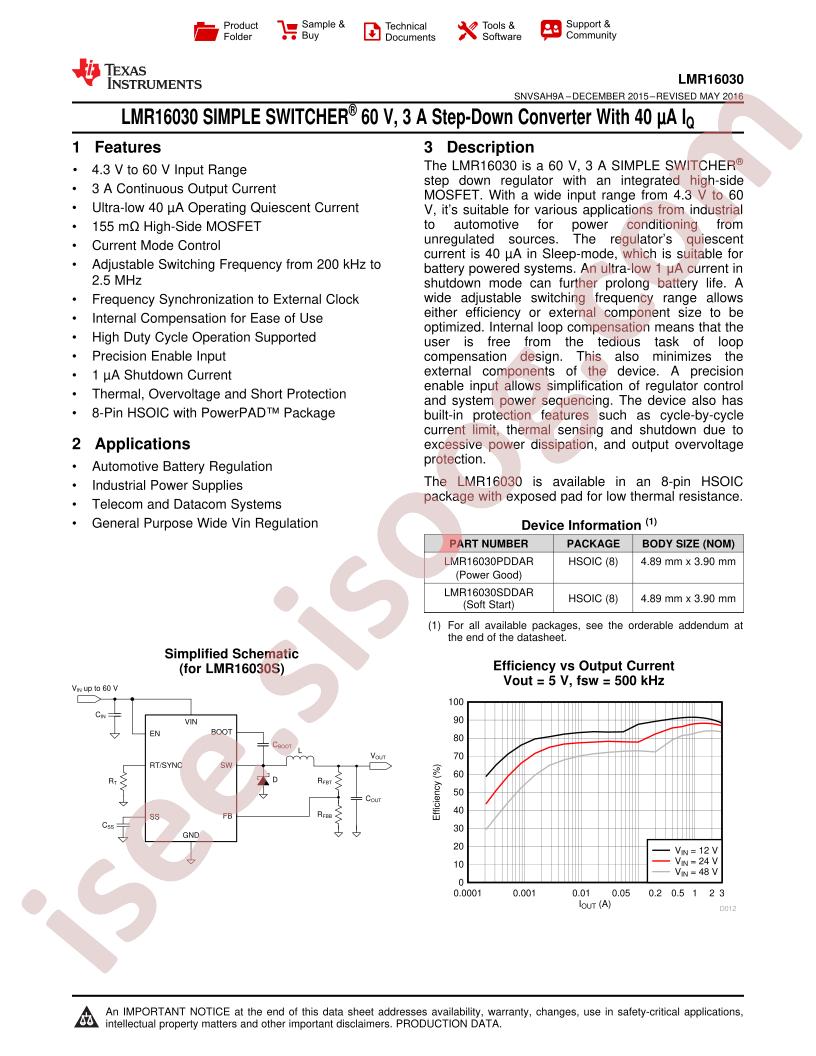

دانلود دیتاشیت LMR16030 Datasheet |
LMR16030 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments LMR16030PDDAR
- Output Type: Adjustable
- Input Voltage: 4.3V~60V
- Output Voltage: 0.8V~50V
- Number of Outputs: 1
- Switching Frequency: 2.5MHz
- Output Current (Max): 3A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: SOP-8-EP
- Manufacturer: Texas Instruments
- Supplier Device Package: 8-SO PowerPad
- Voltage - Input (Min): 4.3V
- Voltage - Output (Max): 50V
- Output Configuration: Positive
- Mounting Type: Surface Mount
- Current - Output: 3A
- Synchronous Rectifier: No
- Frequency - Switching: 200kHz ~ 2.5MHz
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 0.8V
- Series: SIMPLE SWITCHER®
- Base Part Number: LMR1603
- Voltage - Input (Max): 60V
- Part Status: Active
- Package / Case: 8-PowerSOIC (0.154", 3.90mm Width)
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-PowerSOIC (0.154", 3.90mm Width)
