STGWT30HP65FB دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGWT30HP65FB
|
|
حجم فایل
|
51.066
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:

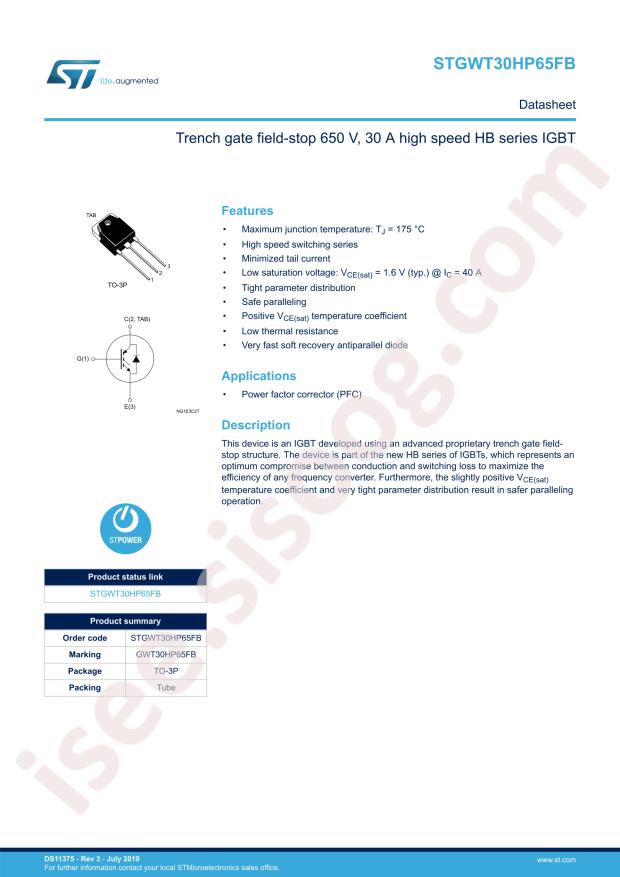

STMicroelectronics STGWT30HP65FB
-
Package:
TO-3P
-
Manufacturer:
STMicroelectronics
-
Series:
HB
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
60A
-
Current - Collector Pulsed (Icm):
120A
-
Vce(on) (Max) @ Vge, Ic:
2V @ 15V, 30A
-
Power - Max:
260W
-
Switching Energy:
293µJ (off)
-
Input Type:
Standard
-
Gate Charge:
149nC
-
Td (on/off) @ 25°C:
-/146ns
-
Test Condition:
400V, 30A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
140ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-3P-3, SC-65-3
-
Supplier Device Package:
TO-3P
-
Base Part Number:
STGWT30
-
detail:

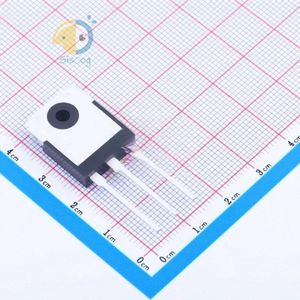

IGBT Trench Field Stop 650V 60A 260W Through Hole TO-3P
